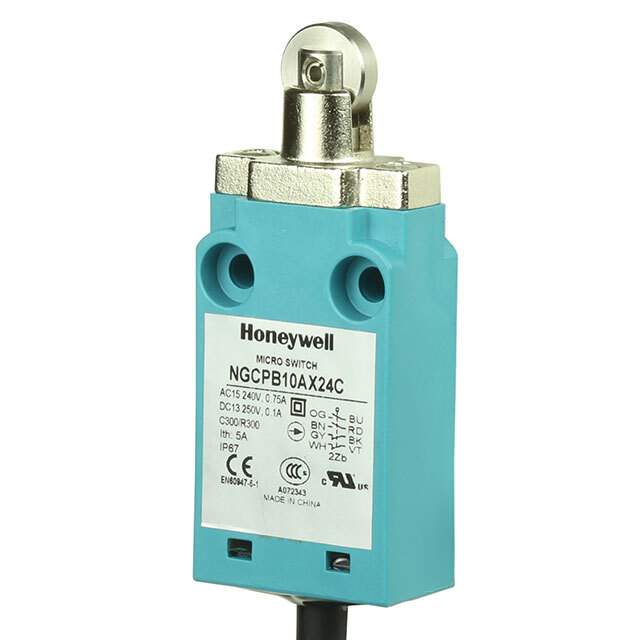

NGCPB10AX24C Real Image
Same model may have multiple batches, images only for reference.

NGCPB10AX24C

Part No NGCPB10AX24C
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT 4PST 750MA 250V  /  Switch 4PST-2NO/2NC Chassis Mount
Datasheet
NGCPB10AX24C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series NGC
Package Bulk
Circuit 4PST-2NO/2NC
Switch Function On-Mom, Off-Mom
Current Rating (Amps) 750mA (AC), 100mA (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 250 V
Actuator Type Roller Plunger
Mounting Type Chassis Mount
Termination Style Cable Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 969gf
Release Force 224gf
Pretravel 0.083" (2.1mm)
Differential Travel 0.050" (1.3mm)
Overtravel 0.193" (4.9mm)
Temperature Range - Operating -25°C ~ 75°C
Operating Position 0.083" (2.1mm)
Electrical Life 500,000 Cycles
Mechanical Life 5,000,000 Cycles
Base Product Number NGCPB10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names 480-6512,2266-NGCPB10AX24C
Standard Package 1
Win Source Part Number 1168179-NGCPB10AX24C
Ultra Librarian 3D Model Ultra Librarian NGCPB10AX24C CAD Model

Description

The NGCPB10AX24C is a limit switch designed for chassis mount applications.

  • Mounting Type: chassis mount
  • Actuator Type: roller plunger
  • Circuit: 4PST-2NO/2NC
  • Operating Force: 969gf
  • Release Force: 224gf
  • Pretravel: 0.083" (2.1mm)
  • Differential Travel: 0.050" (1.3mm)
  • Overtravel: 0.193" (4.9mm)
  • Operating Position: 0.083" (2.1mm)
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Voltage Rating: 250 V AC/DC
  • Current Rating: 750mA (AC), 100mA (DC)
  • Package: bulk
  • Termination Style: cable leads
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.50.7000
