Same model may have multiple batches, images only for reference.

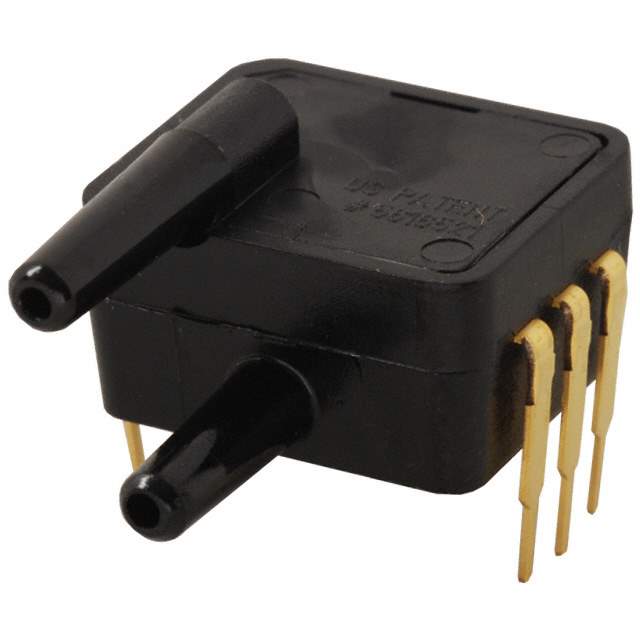

SCC05DD4 Real Image
Same model may have multiple batches, images only for reference.

SCC05DD4

Part No SCC05DD4
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 5PSI / Pressure Sensor 0psi to 5psi Differential Automotive 6-Pin DIP-DD4
Datasheet
SCC05DD4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series SCC
Part Status Obsolete(EOL)
Pressure Type Differential
Operating Pressure 5 PSI (34.47 kPa)
Output Type Wheatstone Bridge
Output 25 mV ~ 65 mV
Accuracy ±0.5%
Port Size Male - 0.09" (2.29mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 20 PSI (137.9 kPa)
Operating Temperature Range -40°C ~ 85°C
Package 6-DIP Module
Win Source Part Number 793990-SCC05DD4
Popularity Medium
Supply and Demand Status Limited
Family Name SCC05D
Introduction Date October 06, 1998
Country of Origin China, Mexico, United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SCC05DD4 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SCC05DD4 sensor is a differential pressure type with a male-0.09" (2.29mm) tube, dual port style.

  • Pressure Type: Differential
  • Tube Style: Male-0.09" (2.29mm), Dual Port
  • Termination: PCB
  • Temperature Range: -40°C to 85°C
  • Output Type: Wheatstone Bridge
  • Output Range: 25mV to 65mV
  • Accuracy: ±0.5%
  • Package: 6-DIP
  • EOL Date: Obsolete
  • Introduction Date: October 06, 1998
  • Alternative Parts: NSCDRRN005PDUNV
