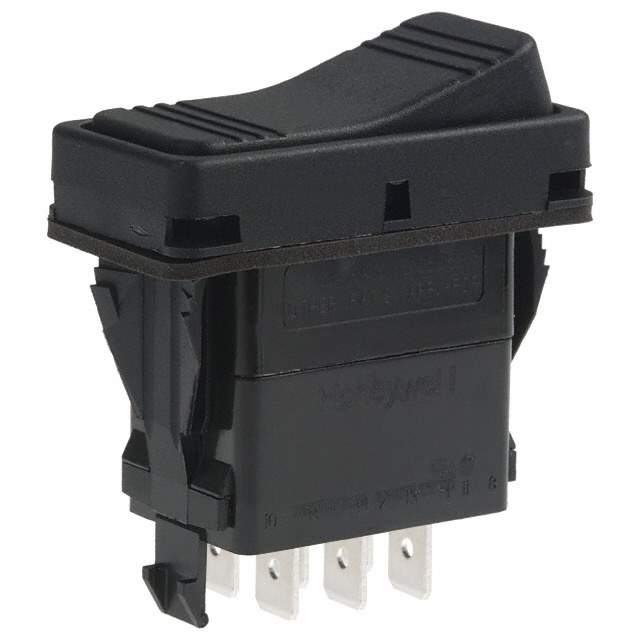

SRN91-27BB Real Image
Same model may have multiple batches, images only for reference.

SRN91-27BB

Part No SRN91-27BB
Manufacturer Honeywell
Catalog Rocker Switches
Description SWITCH ROCKER DPDT 15A 125V  /  Rocker Switch DPDT 15A (AC) 125 V Panel Mount, Snap-In
Datasheet
SRN91-27BB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SRN
Package Bulk
Product Status Obsolete
Mounting Type Panel Mount, Snap-In
Circuit DPDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions Rectangular - 36.83mm x 20.82mm
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 150,000 Cycles
Electrical Life 50,000 Cycles
Other Names 480-2159
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233231-SRN91-27BB
Ultra Librarian 3D Model Ultra Librarian SRN91-27BB CAD Model

Description

The Honeywell Sensing and Productivity Solutions SRN91-27BB is a rocker switch that has a circuit of DPDT and a switch function of Mom-Off-Mom.

  • Circuit: DPDT
  • Switch Function: Mom-Off-Mom
  • Termination Style: Quick connect termination style of 0.250" (6.3mm)
  • Mounting Type: Panel mount, snap-in
  • Actuator Color: Black
  • Mechanical Life: 150,000 cycles
