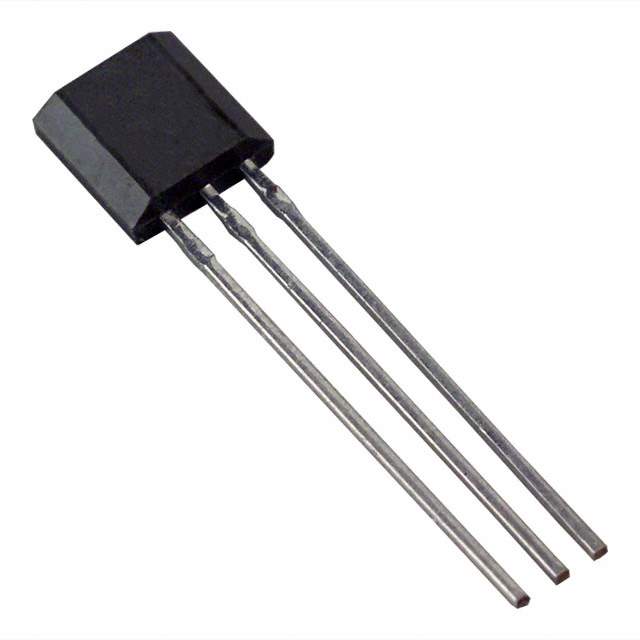

SS41-L Real Image
Same model may have multiple batches, images only for reference.

SS41-L

Part No SS41-L
Manufacturer Honeywell
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH BIPOLAR RADIAL / Digital Switch Bipolar Switch Open Drain Hall Effect Radial Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Honeywell Sensing and Productivity Solutions
Series SS41
Package Bulk
Function Bipolar Switch
Technology Hall Effect
Polarization North Pole, South Pole
Sensing Range 15mT Trip, -14mT Release
Test Condition 25°C
Voltage - Supply 4.5V ~ 24V
Current - Supply (Max) 15mA
Current - Output (Max) 20mA
Output Type Open Drain
Temperature Range - Operating -40°C ~ 150°C (TA)
Mounting Type Through Hole
Supplier Device Package Radial Lead
Package / Case 3-SIP
Base Product Number SS41
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235184-SS41-L
Ultra Librarian 3D Model Ultra Librarian SS41-L CAD Model

Description

The SS41-L magnetic sensor from Honeywell Sensing and Productivity Solutions is a solid-state switch that uses Hall Effect technology.

  • Manufacturer: Honeywell Sensing and Productivity Solutions
  • Function: Solid-State Switch
  • Technology: Hall Effect
  • Output Type: Open Drain
  • Function: Bipolar Switch
  • Sensing Range: 15mT trip and -14mT release
  • Voltage Supply: 4.5V to 24V
  • Maximum Current Supply: 15mA
  • Maximum Current Output: 20mA
  • Package: 3-SIP
  • Supplier Device Package: Radial Lead
  • Operating Temperature: -40°C to 150°C
  • Lifecycle Status: Obsolete
