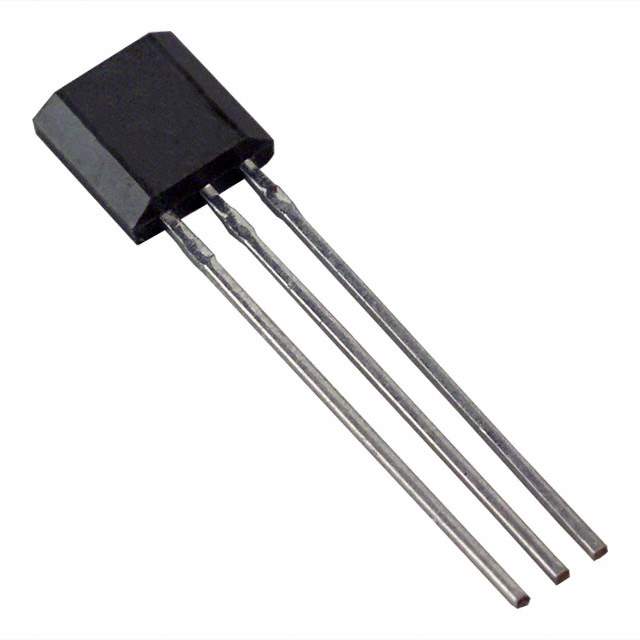

SS94B1A Real Image
Same model may have multiple batches, images only for reference.

SS94B1A

Part No SS94B1A
Manufacturer Honeywell
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR LINEAR ANALOG 3SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Control EMEA
Packaging Bulk
Status Obsolete(EOL)
Type Linear
Technology Hall Effect
Axis Single
Output Type Analog Voltage
Sensing Range ±67mT
Supply Voltage - Operating 4.5 V to 12 V
Current - Supply (Max) 11mA
Current - Output (Max) 2mA
Temperature Range - Operating -50°C to 150°C (TA)
Case / Package 3-SIP
Win Source Part Number 047261-SS94B1A
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Automotive, Commercial, Industrial
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian SS94B1A CAD Model

Description

The Honeywell Sensing and Control EMEA linear type hall effect sensor is a reliable and accurate device that is ideal for use in power management, automotive, commercial, and industrial applications.

  • Sensing range: ±67mT
  • Supply voltage: 4.5 V to 12 V
  • Output type: Analog voltage
  • Current supply: 11mA
  • Maximum output current: 2mA
  • Axis: Single
  • Package: 3-SIP
  • Temperature range: -50°C to 150°C (TA)
