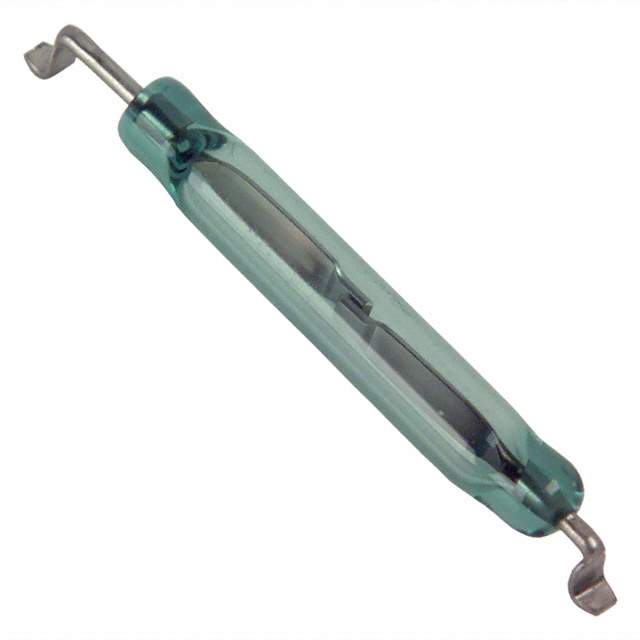

MDSM-4B-32-38 Real Image
Same model may have multiple batches, images only for reference.

MDSM-4B-32-38

Part No MDSM-4B-32-38
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SWITCH REED SPST-NO 350MA 140V / Glass Body Reed Switch SPST-NO 32 ~ 38AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Magnetic, Reed Switches
Mfr Littelfuse Inc.
Series MDSM-4
Package Bulk
Type Glass Body Reed
Circuit SPST-NO
Operate Range 32 ~ 38AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Operate Time 0.6 ms
Release Time 0.2 ms
Mounting SMD (SMT)
Termination Style Gull Wing
Length - Overall 0.760" (19.30mm)
Size - Body 0.090" Dia x 0.600" L (2.28mm x 15.24mm)
Height Above Board 0.112" (2.85mm)
Temperature Range - Operating -40°C ~ 125°C
Capacitance 0.2 pF
Current - Carry 1.2A (DC)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names -MDSM-4B-32-38,F7887,MDSM-4B-32-38-ND
Standard Package 100
Win Source Part Number 1124137-MDSM-4B-32-38
Ultra Librarian 3D Model Ultra Librarian MDSM-4B-32-38 CAD Model

Description

The Littelfuse Inc. MDSM-4B-32-38 is a glass body reed switch.

  • Circuit Configuration: SPST-NO
  • Temperature Range: -40°C to 125°C
  • Operate Range: 32~38AT
  • Release Time: 0.2ms
  • Current Switching Capacity (AC): 350mA
  • Current Switching Capacity (DC): 500mA
  • Voltage Switching Capacity (AC): 140V
  • Voltage Switching Capacity (DC): 200V
  • Package: Bulk
  • Mounting: SMD
