Same model may have multiple batches, images only for reference.

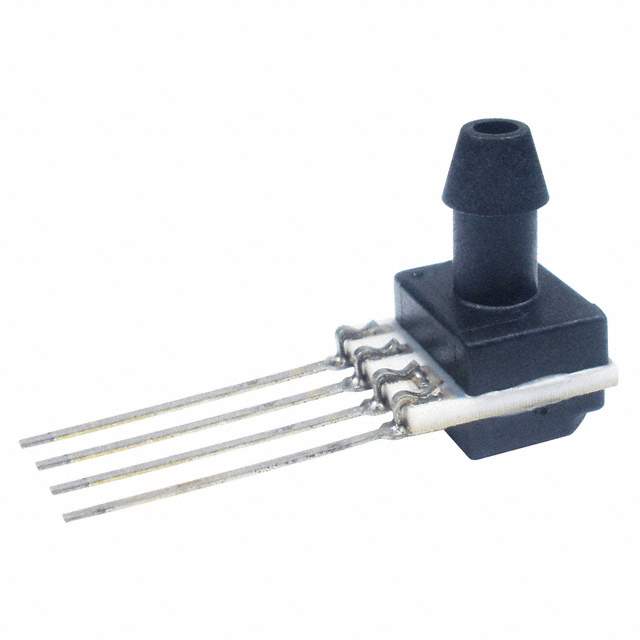

SSCSANN001PG2A3 Real Image
Same model may have multiple batches, images only for reference.

SSCSANN001PG2A3

Part No SSCSANN001PG2A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 1PSI GAUG 3.3V SIP / Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 12 b 4-SIP, Side Port
Datasheet
SSCSANN001PG2A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 1PSI (6.89kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 10PSI (68.95kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Side Port
Supplier Device Package 4-SIP
Base Product Number SSCSANN
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234405-SSCSANN001PG2A3
Ultra Librarian 3D Model Ultra Librarian SSCSANN001PG2A3 CAD Model

Description

The Honeywell TruStability® SSC series pressure sensor has a part number of SSCSANN001PG2A3.

  • Output: Amplified
  • Temperature Compensation: Yes
  • Output Type: I2C
  • Output: 12 b
  • Pressure Type: vented gauge
  • Operating Pressure: 1PSI (6.89kPa)
  • Port Size: male - 0.19" (4.93mm) tube
  • Port Style: barbed
  • Maximum Pressure: 10PSI (68.95kPa)
  • Voltage Supply Range: 3V to 3.6V
  • Manufacturer: Honeywell Sensing and Productivity Solutions
