Same model may have multiple batches, images only for reference.

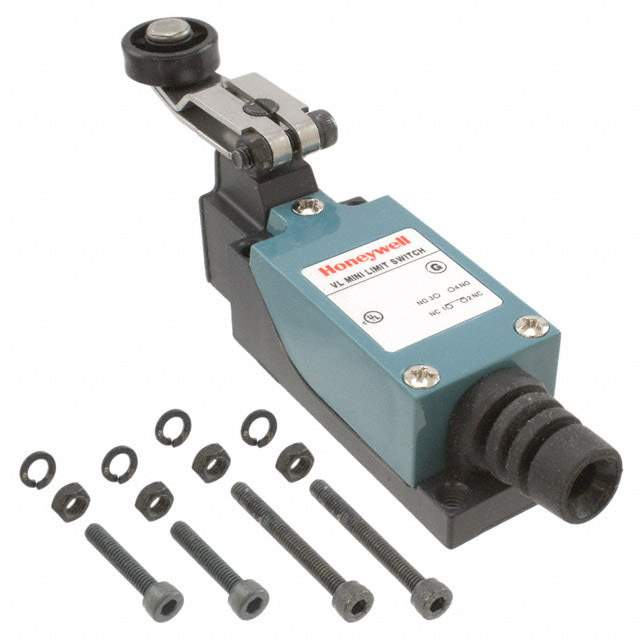

SZL-VL-A Real Image
Same model may have multiple batches, images only for reference.

SZL-VL-A

Part No SZL-VL-A
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 250V / Switch SPDT (DB/DM) Chassis Mount
Datasheet
SZL-VL-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SZL-VL
Package Bulk
Product Status Obsolete
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 5A (AC), 400mA (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Actuator Type Side Rotary, Roller
Mounting Type Chassis Mount
Termination Style Cable Gland
Ingress Protection IP64 - Dust Tight, Water Resistant
Operating Force 600gf
Release Force 50gf
Pretravel 20°
Differential Travel 10°
Overtravel 75°
Temperature Range - Operating -20°C ~ 60°C
Mechanical Life 10,000,000 Cycles
Other Names 480-5206,SZLVLA,SZL-VL-A
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1233648-SZL-VL-A
Ultra Librarian 3D Model Ultra Librarian SZL-VL-A CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1233648-SZL-VL-A limit switch is a high-quality switch that is perfect for use in a variety of applications.

  • Termination Style: Cable gland
  • Ingress Protection: IP64 rated, making it dust tight and water-resistant
  • Voltage Rating: 250 V AC and 125 V DC
  • Circuit: SPDT (DB/DM)
  • Switch Function: on-mom
  • Actuator Type: Side rotary, roller
  • Electrical Life: 10,000,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Mounting: Chassis mount
  • Temperature Range: -20°C to 60°C
