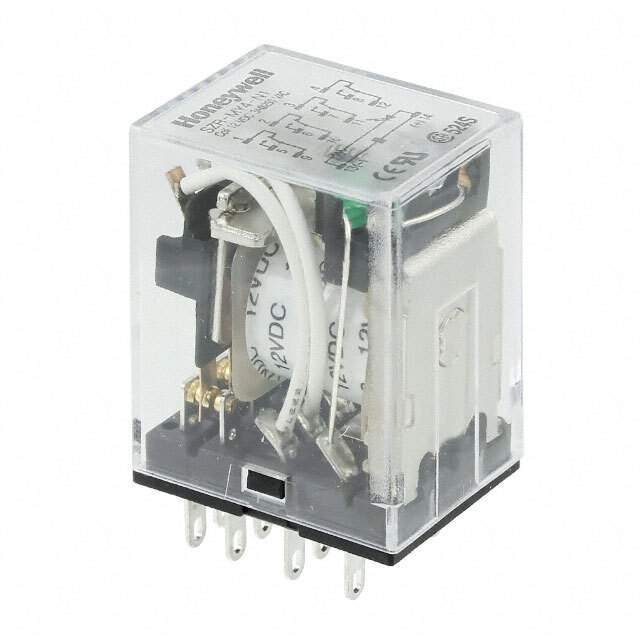

SZR-MY4-N1-DC12V Real Image
Same model may have multiple batches, images only for reference.

SZR-MY4-N1-DC12V

Part No SZR-MY4-N1-DC12V
Manufacturer Honeywell
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 3A 12V / General Purpose Relay 4PDT (4 Form C) 12VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Honeywell Sensing and Productivity Solutions
Series SZR-MY
Package Bulk
Mounting Type Socketable
Coil Voltage 12VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 79 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 20 ms
Contact Material Silver (Ag)
Relay Type General Purpose
Coil Resistance 160 Ohms
Base Product Number SZR-MY4
Other Names 480-6228,SZR-MY4-N1-DC12V
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1237313-SZR-MY4-N1-DC12V
Ultra Librarian 3D Model Ultra Librarian SZR-MY4-N1-DC12V CAD Model

Description

The SZR-MY4-N1-DC12V is a power relay manufactured by Honeywell Sensing and Productivity Solutions.

  • Contact Form: 4PDT (4 Form C)
  • Contact Material: Silver (Ag)
  • Coil Voltage: 12VDC
  • Coil Resistance: 160 Ohms
  • Coil Current: 79 mA
  • Contact Rating: 3 A
  • Switching Voltage: 250VAC, 125VDC - Max
  • Relay Type: General Purpose
  • Features: Lighted Indicator
  • Operating Temperature Range: Not Available
  • Package: Bulk
  • Mounting Type: Socketable
