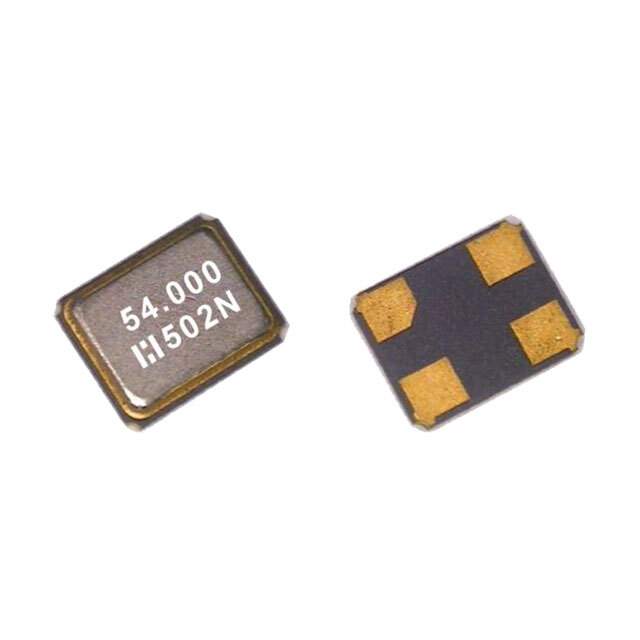

E3SB37E0X0004E Real Image
Same model may have multiple batches, images only for reference.

E3SB37E0X0004E

Part No E3SB37E0X0004E
Manufacturer Hosonic Electronic Co., Ltd
Catalog Crystals
Description XTAL 3225 37.4MHZ, 16PF / 37.4 MHz ±10ppm Crystal 16pF 50 Ohms 4-SMD, No Lead
Datasheet
E3SB37E0X0004E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Hosonic Electronic Co., Ltd
Series E3SB
Package Tape & Reel
Type MHz Crystal
Frequency 37.4 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 16pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.030" (0.75mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1350657-E3SB37E0X0004E
Ultra Librarian 3D Model Ultra Librarian E3SB37E0X0004E CAD Model

Description

The E3SB37E0X0004E is a MHz crystal oscillator from the E3SB series.

  • Frequency: 37.4 MHz
  • Frequency Tolerance: ±10ppm
  • Frequency Stability: ±10ppm
  • Equivalent Series Resistance (ESR): 50 ohms
  • Load Capacitance: 16pF
  • Package: 4-SMD, No Lead
  • Operating Temperature: -30°C to 85°C
