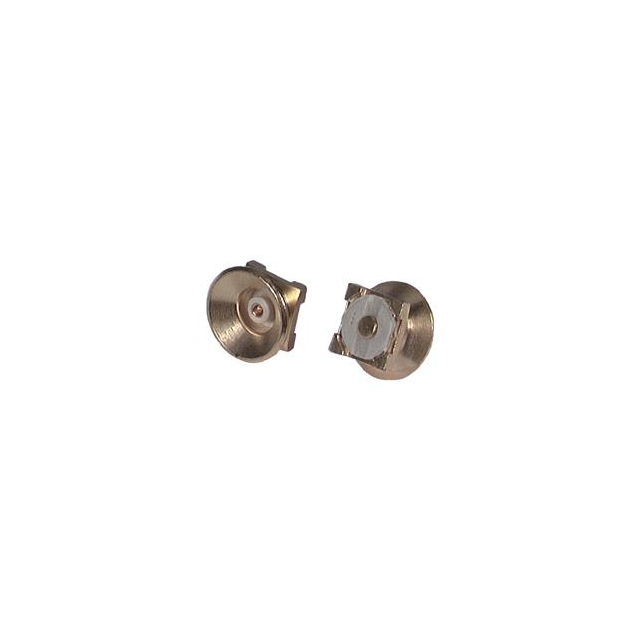

82_MMBX-S50-0-13/111_NM Real Image1 82_MMBX-S50-0-13/111_NM Real Image2
Same model may have multiple batches, images only for reference.
82_MMBX-S50-0-13/111_NM Real Image1 82_MMBX-S50-0-13/111_NM Real Image2
82_MMBX-S50-0-13/111_NM Real Image1 82_MMBX-S50-0-13/111_NM Real Image2
Same model may have multiple batches, images only for reference.

82_MMBX-S50-0-13/111_NM

Part No 82_MMBX-S50-0-13/111_NM
Manufacturer Huber+Suhner, Inc.
Catalog Coaxial Connectors (RF)
Description 82_MMBX-S50-0-13/111_NM / MMBX Connector Jack, Female Socket 50Ohm Surface Mount Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Huber+Suhner, Inc.
Package Tape & Reel (TR),Cut Tape (CT)
Connector Style MMBX
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 155°C
Voltage Rating 250 V
Mating Cycles 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 3628-82_MMBX-S50-0-13/111_NM,3628-82_MMBX-S50-0-13/111_NMTR,3628-82_MMBX-S50-0-13/111_NM-ND,23041511,3628-82_MMBX-S50-0-13/111_NMCT
Standard Package 750
Win Source Part Number 1179236-82_MMBX-S50-0-13/111_NM
Ultra Librarian 3D Model Ultra Librarian 82_MMBX-S50-0-13/111_NM CAD Model

Description

This MMBX female socket connector from Huber+Suhner, Inc. is a coaxial connector with a snap-on fastening type.

  • Connector Type: Coaxial
  • Fastening Type: Snap-On
  • Voltage - Rated: 250 V
  • Frequency - Max: 12.4 GHz
  • Shell Material Finish: Brass, Gold
  • Contact Material: Brass
  • Contact Finish: Gold
  • Impedance: 50Ohm
  • Operating Temperature: -55°C ~ 155°C
  • Mounting Type: Surface Mount
  • Standard Package: 750
  • Packaging: Tape & Reel (TR)
