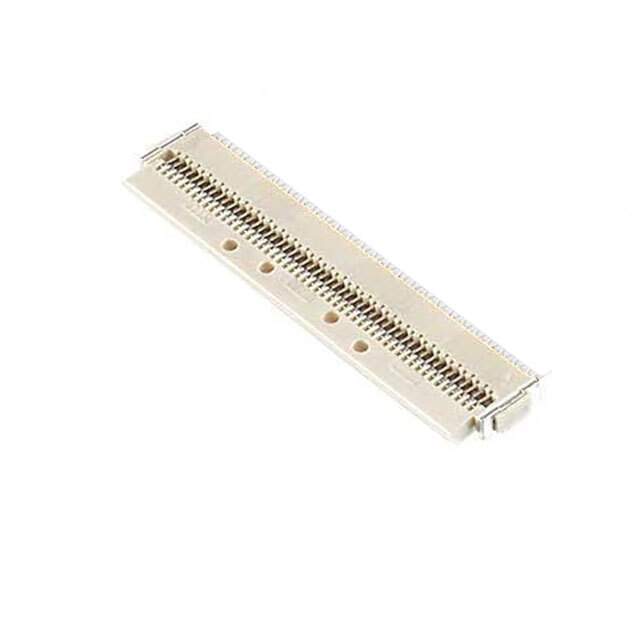

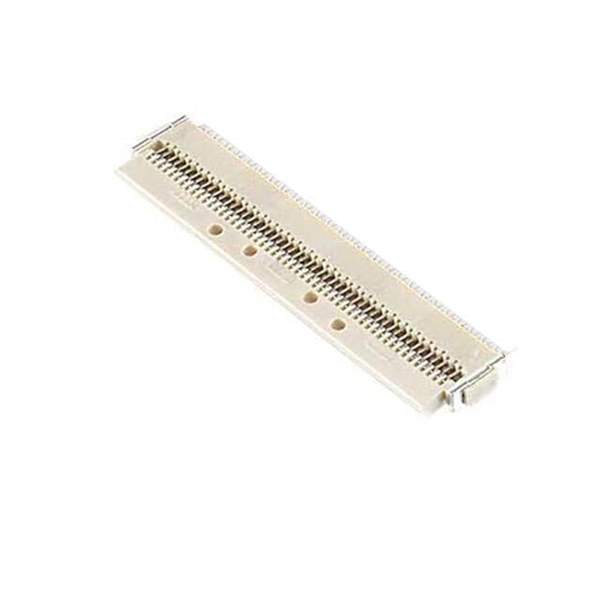

20982-051E-01 Real Image
Same model may have multiple batches, images only for reference.

20982-051E-01

Part No 20982-051E-01
Manufacturer I-Pex
Catalog FFC, FPC (FlatFlexible) Connectors
Description MINIFLEX 3-BFN L-HD / 51 Position FFC, FPC Connector Contacts, Top and Bottom 0.008" (0.20mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer I-Pex
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 51
Pitch 0.008" (0.20mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.90mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 300mA per Contact
Contact Finish Thickness 4.00µin (0.10µm)
Housing Color Beige
Actuator Color Beige
Mating Cycles 20
Base Product Number 20982
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Other Part Number 3508-20982-051E-01CT,3508-20982-051E-01DKR,3508-20982-051E-01TR
Standard Package 4,000
Win Source Part Number 1333272-20982-051E-01
Ultra Librarian 3D Model Ultra Librarian 20982-051E-01 CAD Model

Description

The I-Pex FFC, FPC (Flat Flexible) Connector Assembly is a top and bottom contact type connector with a pitch of 0.20mm.

  • Positions: 51
  • Features: Solder Retention
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 0.10µm
  • Voltage Rating: 50V
  • Current Rating: 300mA per contact
  • Locking Feature: Flip Lock and Backlock
  • Cable End Type: Tabbed
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -40°C to 85°C
  • Standard Package: 4,000
