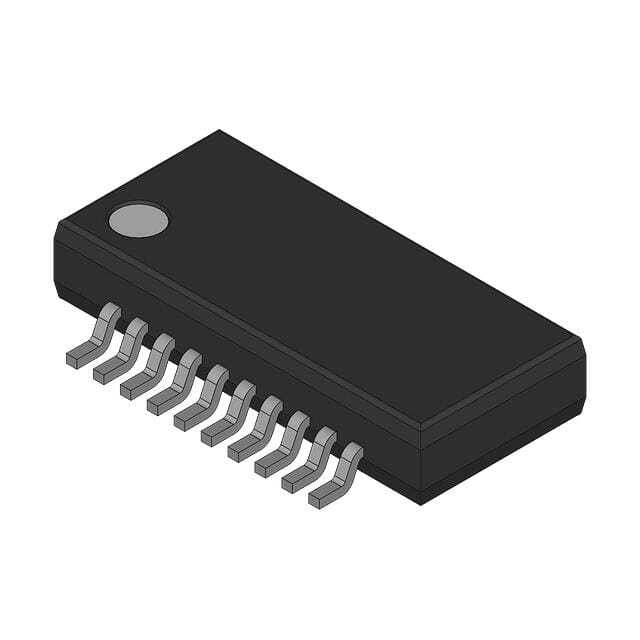

Same model may have multiple batches, images only for reference.
74FCT3245AQG IDT, Integrated Device Technology Inc
Same model may have multiple batches, images only for reference.

74FCT3245AQG

Part No 74FCT3245AQG
Manufacturer IDT, Integrated Device Technology Inc
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description IC TXRX NON-INVERT 3.6V 20QSOP / Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-QSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Logic - Buffers, Drivers, Receivers, Transceivers
Mfr IDT, Integrated Device Technology Inc
Series 74FCT
Package Bulk
Logic Type Transceiver, Non-Inverting
Number of Elements 1
Number of Bits per Element 8
Output Type 3-State
Current - Output High, Low 8mA, 24mA
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 20-SSOP (0.154", 3.90mm Width)
Supplier Device Package 20-QSOP
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2156-74FCT3245AQG,IDTIDT74FCT3245AQG
Standard Package 1
Win Source Part Number 1053612-74FCT3245AQG
Ultra Librarian 3D Model Ultra Librarian 74FCT3245AQG CAD Model

Description

The IDT 74FCT3245AQG is a non-inverting transceiver logic buffer with a 3-state output.

  • Logic Type: Non-Inverting Transceiver
  • Output: 3-State
  • Voltage Supply: 2.7V to 3.6V
  • Current Output High: 8mA
  • Current Output Low: 24mA
  • Elements: 1
  • Bits per Element: 8
  • Package: 20-SSOP (0.154", 3.90mm Width)
  • Supplier Device Package: 20-QSOP
  • Alternative Parts: SN74LVCR2245ADBQR, 74FCT245ATQG8, 74FCT540ATQG, 74FCT540ATQG8
