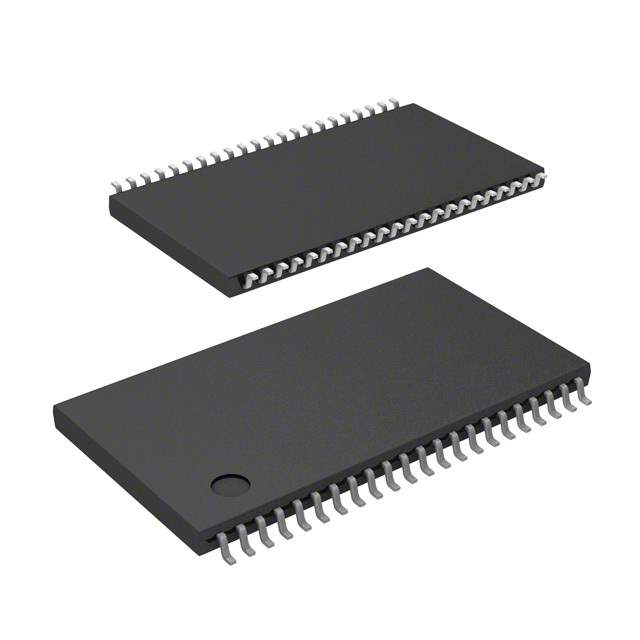

IDT71016S20PHI Real Image
Same model may have multiple batches, images only for reference.

IDT71016S20PHI

Part No IDT71016S20PHI
Manufacturer IDT, Integrated Device Technology Inc
Catalog RAM
Description CMOS Static RAM 1 Meg (64K x 16-Bit)
Datasheet
IDT71016S20PHI Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer IDT, Integrated Device Technology Inc
Packaging Tube
Part Status Obsolete(EOL)
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 1Mb (64K x 16)
Write Cycle Time - Word, Page 20ns
Access Time 20ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 44-TSOP (0.400", 10.16mm Width)
Manufacturer Package 44-TSOP II
RoHS State Request Verification
Win Source Part Number 1184312-IDT71016S20PHI
Manufacturer Homepage www.idt.com
Popularity Medium
Supply and Demand Status Limited
Family Name 71016S
Introduction Date February 01, 2007
ECCN 3A991.b.2.b
Country of Origin Indonesia
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian IDT71016S20PHI CAD Model

Description

The IDT 1184312-IDT71016S20PHI is a volatile SRAM - asynchronous memory integrated circuit.

  • Memory Size: 1Mb (64K x 16)
  • Access Time: 20ns
  • Package: 44-TSOP (0.400", 10.16mm Width)
  • Voltage Range: 4.5 V to 5.5 V
  • Status: Obsolete
  • Estimated EOL Date: N/A
  • Supply and Demand: Limited
  • Popularity: Medium
