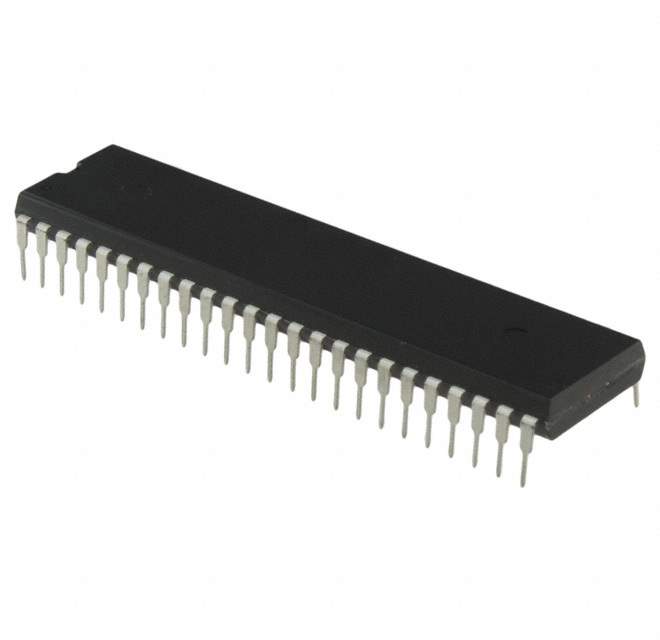

The IDT7132SA100P is a high-speed, low-power asynchronous dual-port static RAM (SRAM) manufactured by Integrated Device Technology (IDT). This device provides simultaneous access to a common memory array from two independent ports, facilitating efficient interprocessor communication and data sharing in a variety of applications.

Applications

• Interprocessor Communication: Used in systems where two processors need to share data quickly and efficiently.
• Data Buffering: Employed as a buffer between systems operating at different speeds.
• Real-Time Data Acquisition: Facilitates the capture and processing of real-time data by multiple processors concurrently.
• Signal Processing: Used in signal processing applications where data needs to be accessed and processed by multiple processing units.
• Networking Equipment: Found in network switches and routers for fast packet buffering and forwarding.

Features

• High-Speed Access: Offers a fast access time of 100ns, enabling rapid data retrieval and storage.
• Asynchronous Operation: Operates asynchronously, simplifying system design and eliminating the need for complex clock synchronization.
• Dual-Port Architecture: Allows simultaneous and independent access from two ports, improving system throughput.
• Low Power Consumption: Designed for low power operation, making it suitable for battery-powered and energy-sensitive applications.
• Interrupt Flags: Provides interrupt flags to signal data availability or status changes to the processors.
• On-Chip Arbitration Logic: Includes on-chip arbitration logic to resolve simultaneous access conflicts.
• TTL-Compatible Inputs and Outputs: Compatible with standard TTL logic levels, simplifying interfacing with other system components.

Benefits

• Increased System Throughput: Dual-port architecture enables simultaneous access, resulting in improved system performance and throughput.
• Simplified System Design: Asynchronous operation and TTL compatibility simplifies system design and reduces the need for complex interface circuitry.
• Efficient Interprocessor Communication: Facilitates fast and reliable interprocessor communication, enabling efficient data sharing and coordination.
• Reduced Power Consumption: Low power consumption extends battery life and reduces overall system power requirements.
• Real-Time Performance: High-speed access and dual-port operation enable real-time data acquisition and processing.

Additional Details

The IDT7132SA100P is typically available in a plastic DIP package. It operates over a standard commercial temperature range. The device requires a single 5V power supply. The memory array size is 2K x 8 bits. This SRAM provides a cost-effective solution for applications requiring high-speed, low-power, and dual-port access capabilities. Its asynchronous operation and on-chip arbitration logic ensure reliable data access and minimal system overhead.
