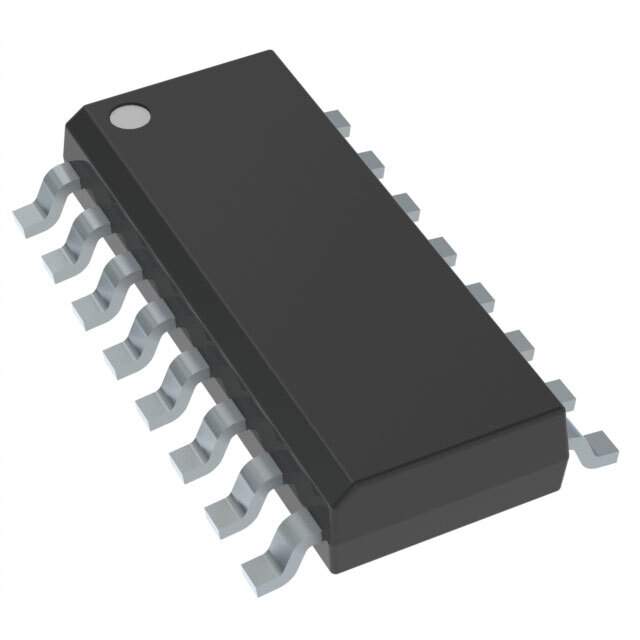

2EDF7275FXUMA1 Real Image
Same model may have multiple batches, images only for reference.

2EDF7275FXUMA1

Part No 2EDF7275FXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDG DSO16-11 / Half-Bridge Gate Driver IC Non-Inverting PG-DSO-16-11
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Power Management (PMIC)>Gate Drivers
Manufacturer Infineon Technologies
Packaging Reel - TR
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel, P-Channel MOSFET
Voltage - Supply 20V
Logic Voltage - VIL, VIH -, 1.65V
Current - Peak Output (Source, Sink) 4A, 8A
Input Type Non-Inverting
Rise / Fall Time (Typ) 6.5ns, 4.5ns
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Case / Package 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package PG-DSO-16-11
Base Product Number 2EDF7275
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 2EDF7275FXUMA1-ND,2EDF7275FXUMA1TR,SP001698294,2156-2EDF7275FXUMA1,2EDF7275FXUMA1DKR,2EDF7275FXUMA1CT,IFEINF2EDF7275FXUMA1
Standard Package 2,500
Win Source Part Number 1323578-2EDF7275FXUMA1
Ultra Librarian 3D Model Ultra Librarian 2EDF7275FXUMA1 CAD Model

Description

The Infineon Technologies 1323578-2EDF7275FXUMA1 is a power management gate driver integrated circuit.

  • Driven Configuration: Half-Bridge
  • Channels: 2 (Independent)
  • Gate Type: N-Channel and P-Channel MOSFET
  • Input Type: Non-Inverting
  • Logic Voltage (VIL): -
  • Logic Voltage (VIH): 1.65V
  • Peak Output Current (Source): 4A
  • Peak Output Current (Sink): 8A
  • Rise Time: 6.5ns
  • Fall Time: 4.5ns
  • Package: PG-DSO-16-11
  • Temperature Range: -40°C to 125°C
  • ROHS3: Compliant
