Same model may have multiple batches, images only for reference.

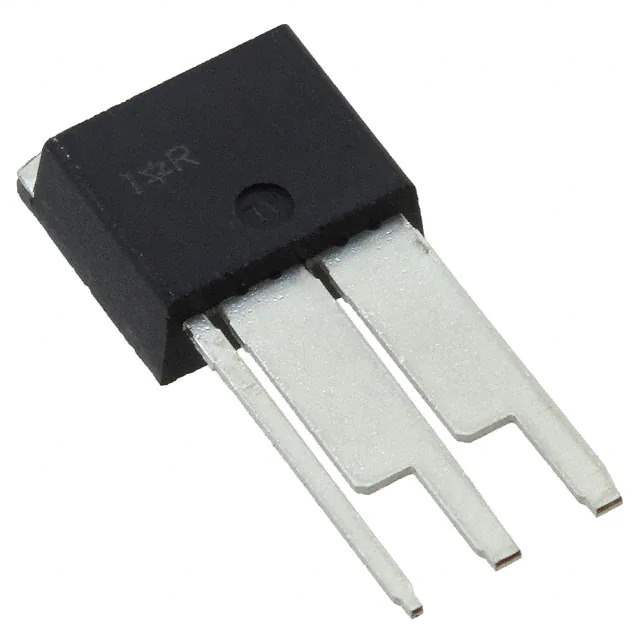

AUIRF1324WL Real Image
Same model may have multiple batches, images only for reference.

AUIRF1324WL

Part No AUIRF1324WL
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 24V 240A TO262-3
Datasheet
AUIRF1324WL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Infineon Technologies
Series HEXFET®
Package Tube
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 24 V
Current - Continuous Drain (Id) @ 25°C 240A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 1.3mOhm @ 195A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 180 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 7630 pF @ 19 V
Power Dissipation (Max) 300W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-262-3 Wide
Package / Case TO-262-3 Wide Leads
Base Product Number AUIRF1324
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 567079-AUIRF1324WL
Ultra Librarian 3D Model Ultra Librarian AUIRF1324WL CAD Model

Description

The AUIRF1324WL is an N-Channel MOSFET transistor from Infineon Technologies.

  • Series: HEXFET series
  • Package: TO-262-3 Wide Leads
  • Vdss: 24V
  • Power Dissipation: 300W
  • Id @ 25°C: 240A
  • Rds On @ 195A, 10V: 1.3mOhm
  • Qg @ 10V: 180nC
  • Ciss @ 19V: 7630pF
  • Operating Temperature: -55°C to 175°C
  • Field: Discrete semiconductor products
  • Specific Field: Transistors and MOSFETs
