The 1350366-AUIRF8739L2TR is a N-channel MOSFET transistor from the HEXFET series from Infineon Technologies.

• FET Type: N-Channel
• Technology: MOSFET (Metal Oxide)
• Vdss: 40 V
• Power Dissipation (Max): 3.8W (Ta), 340W (Tc)
• Mounting Type: Surface Mount

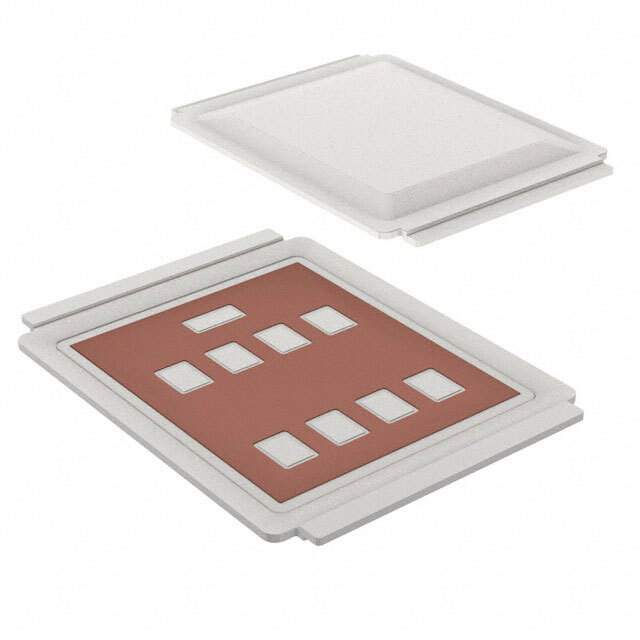

• Package / Case: DirectFET™ Isometric L8
• Supplier Device Package: DirectFET™ Isometric L8
• Packaging: Tape & Reel (TR)
• Vgs (Max): 40V
• Operating Temperature: -55°C ~ 175°C (TJ)
• Drive Voltage (Max Rds On, Min Rds On): 10V
• Current - Continuous Drain (Id) @ 25°C: 57A (Ta), 545A (Tc)
• Rds On (Max) @ Id, Vgs: 0.6mOhm @ 195A, 10V
• Vgs(th) (Max) @ Id: 3.9V @ 250μA
• Gate Charge (Qg) (Max) @ Vgs: 562 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 17890 pF @ 25 V
• Series: Automotive, AEC-Q101, HEXFET®
