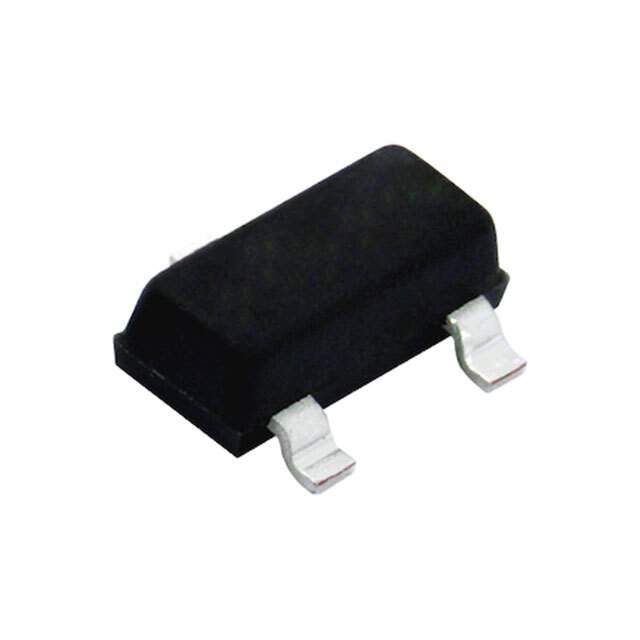

The 1341131-SI2371EDS-T1-BE3 is a P-channel MOSFET transistor from Vishay Siliconix that is designed to meet the requirements of various applications, including AC-DC and DC-DC converters, load switches, and battery management.

• Drain to Source Voltage (Vdss): 30V
• Power Dissipation (Pd) @ Ta: 1W
• Power Dissipation (Pd) @ Tc: 1.7W
• Mounting Type: Surface Mount
• Package / Case: TO-236-3, SC-59, SOT-23-3
• Supplier Device Package: SOT-23-3 (TO-236)
• Gate-Source Voltage (Vgs) (Max): ±12V
• Operating Temperature: -55°C ~ 150°C (TJ)
• Continuous Drain Current (Id) @ Ta: 3.7A
• Continuous Drain Current (Id) @ Tc: 4.8A
• Rds On (Max) @ Id, Vgs: 45mOhm @ 3.7A, 10V
• Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 10 V
