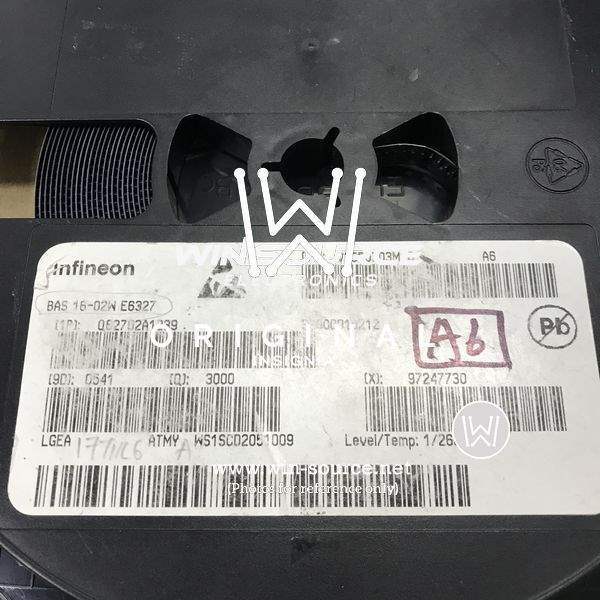

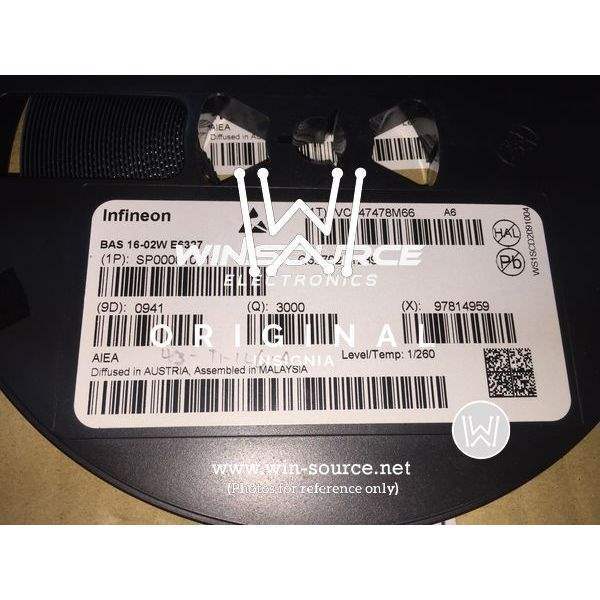

BAS16-02W Infineon Technologies BAS16-02W label picture 2 BAS16-02W label picture BAS16-02W label picture 3
Same model may have multiple batches, images only for reference.
BAS16-02W Infineon Technologies BAS16-02W label picture 2 BAS16-02W label picture BAS16-02W label picture 3
BAS16-02W Infineon Technologies BAS16-02W label picture 2 BAS16-02W label picture BAS16-02W label picture 3
Same model may have multiple batches, images only for reference.

BAS16-02W

Part No BAS16-02W
Manufacturer Infineon Technologies
Catalog HOT - SALES and EOL Components (B - C)
Description Rectifier Diode Switching 85V 0.2A 4ns Automotive 2-Pin SCD-80 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon Technologies
Win Source Part Number 72108-BAS16-02W
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name BAS1602W
Introduction Date December 04, 2003
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BAS16-02W CAD Model

Description

BAS16-02W - High-Speed Switching Diode

The BAS16-02W is a high-speed switching diode, perfect for general-purpose switches in your electronic projects. It offers efficient performance due to its low capacitance and high switching speed, making it ideal for fast switching applications.

  • Applications/Projects:
    • Signal Processing
    • Radio Frequency (RF) Applications
    • High-Speed Rectification
  • Features and Benefits:
    • Compact SOD-323 Package
    • High Switching Speed of up to 6 ns
    • Low Forward Voltage Drop
    • Reliable Performance in a Wide Temperature Range
  • Additional Details:

    This diode's compact design and reliability make it a suitable solution for high-density printed circuit boards (PCBs).
