The BFP620FH7764 is a high-performance, low-noise silicon germanium (SiGe) heterojunction bipolar transistor (HBT) manufactured by Infineon Technologies. It's designed for use in a wide range of high-frequency applications where low noise and high gain are critical.

Applications

• Low Noise Amplifiers (LNAs): Used in receiver front-ends for wireless communication systems, satellite receivers, and radar systems.
• Oscillators: Employed in oscillators for generating stable and clean signals in wireless systems.
• Mixers: Utilized in frequency mixers for up- and down-conversion of signals in communication equipment.
• Voltage Controlled Oscillators (VCOs): Used in VCOs for frequency synthesis and tuning.
• Wireless Communication Systems: Found in cellular base stations, WLAN devices, and other wireless infrastructure.
• Satellite Communication Systems: Used in satellite receivers and transmitters.
• Radar Systems: Employed in radar front-ends for signal amplification and processing.

Features

• High Transition Frequency (fT): Offers high fT for excellent high-frequency performance.
• Low Noise Figure: Provides minimal noise contribution for sensitive receiver applications.
• High Gain: Delivers substantial signal amplification.
• Silicon Germanium (SiGe) Technology: Provides superior performance compared to traditional silicon BJTs.
• Small Package: Compact package for space-constrained designs.
• High Linearity: Ensures minimal signal distortion.
• Pb-Free and RoHS Compliant: Environmentally friendly.

Benefits

• Improved Receiver Sensitivity: Low noise figure enhances the ability to detect weak signals.
• Enhanced Signal Quality: High linearity minimizes signal distortion, resulting in better signal fidelity.
• Extended Communication Range: High gain and low noise figure enable longer communication distances.
• Compact Design: Small package allows for integration into miniature devices.
• High-Frequency Performance: Suitable for applications operating at microwave and millimeter-wave frequencies.
• Reliable Operation: Robust design ensures stable and reliable performance.

Additional Details

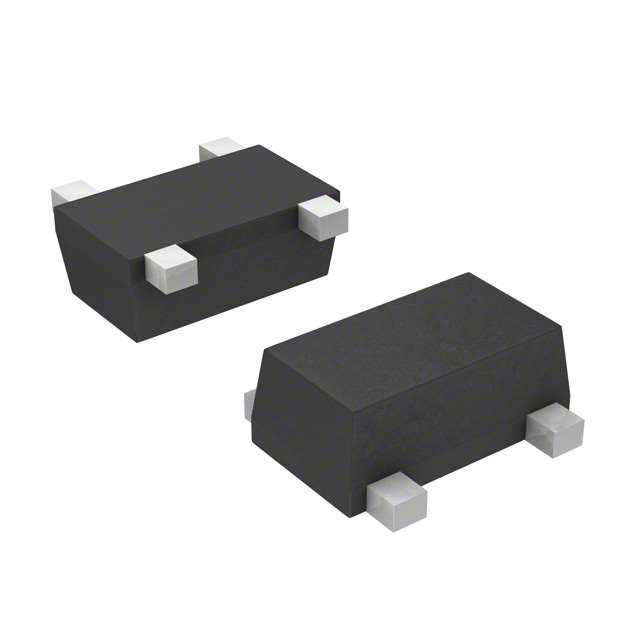

The BFP620FH7764 is optimized for low-noise performance and high gain at microwave frequencies. It typically operates with specific collector-emitter voltage (VCE) and collector current (IC) values, which can be found in the datasheet. The device is available in a small SMD package designed for surface mount technology (SMT) assembly. Its SiGe technology enables higher operating frequencies and better noise performance compared to traditional silicon BJTs. This transistor is an excellent choice for high-performance RF and microwave applications where low noise and high gain are critical. The specific package is a TSLP-3 package.
