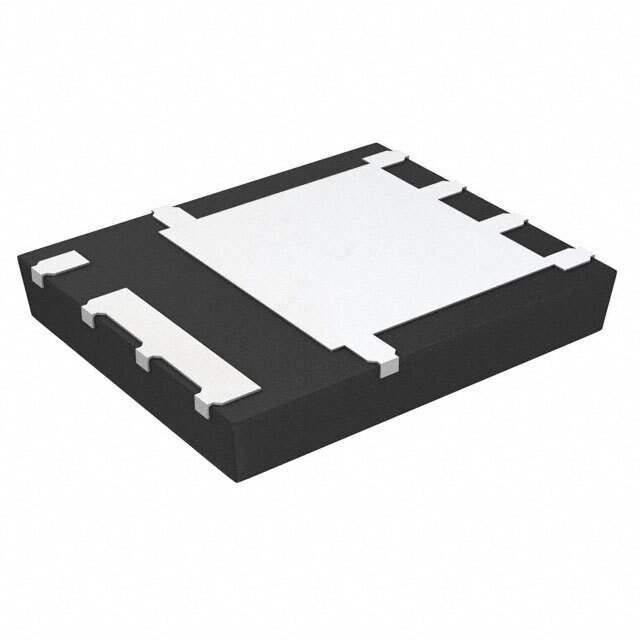

Same model may have multiple batches, images only for reference.
BSC014N06NSTATMA1Infineon Technologies
Same model may have multiple batches, images only for reference.

BSC014N06NSTATMA1

Part No BSC014N06NSTATMA1
Manufacturer Infineon Technologies
Catalog FETs - Single
Description MOSFET N-CH 60V 100A TDSON-8 FL
Datasheet
BSC014N06NSTATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204488-BSC014N06NSTATMA1
Manufacturer Infineon Technologies
Category Discrete Semiconductor Products Transistors -FETs, MOSFETs- Single FETs, MOSFETs
Series OptiMOS™
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Ultra Librarian 3D Model Ultra Librarian BSC014N06NSTATMA1 CAD Model

Description

Features<br />●Optimized for high performance SMPS, e.g. sync. rec.●175 °C rated<br />●100% avalanche tested<br />●Superior thermal resistance<br />●N-channel<br />●Qualified according to JEDEC1) for target applications<br />●Pb-free lead plating; RoHS compliant<br />●Halogen-free according to IEC61249-2-21<br />●Higher solder joint reliability due to enlarged source interconnection
