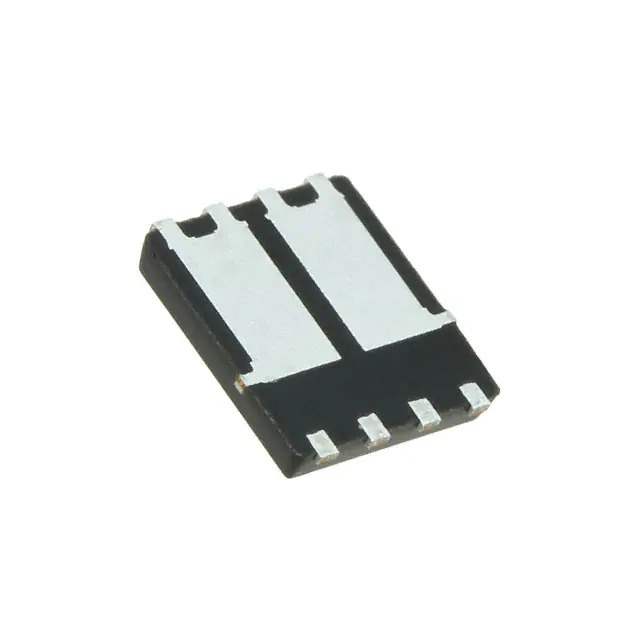

Same model may have multiple batches, images only for reference.

BSC112N06LDATMA1

Name: BSC112N06LDATMA1
Brand: Infineon Technologies
SKU: 853927
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	BSC112N06LDATMA1
Manufacturer	Infineon Technologies
Catalog	FETs - Arrays
Description	TRENCH 40<-<100V / Mosfet Array 60V 20A (Tc) 65W (Tc) Surface Mount PG-TDSON-8-4
Datasheet	BSC112N06LDATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr	Infineon Technologies
Series	OptiMOS™-T2
Package	Tape & Reel
Product Status	Active
Technology	MOSFET (Metal Oxide)
Configuration	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Rds On (Max) @ Id, Vgs	11.2mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	2.2V @ 28µA
Gate Charge (Qg) (Max) @ Vgs	55nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	4020pF @ 30V
Power - Max	65W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PG-TDSON-8-4
Base Product Number	BSC112
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	853927-BSC112N06LDATMA1
Ultra Librarian 3D Model	Ultra Librarian BSC112N06LDATMA1 CAD Model

Alternative Products

Description

The BSC112N06LDATMA1 is a MOSFET (Metal Oxide) integrated circuit (IC) from Infineon Technologies.

Series: OptiMOS™-T2
Application: FET and MOSFET Array
Package: Tape & reel
Standard Package: 5,000 pieces
Vdss: 60V
Id (25°C): 20A
Gate Type: Logic Level
Rds On: 11.2mOhm @ 17A, 10V
Channel Configuration: Dual N-Channel
Operating Temperature: -55°C to 175°C
Product Status: Active
