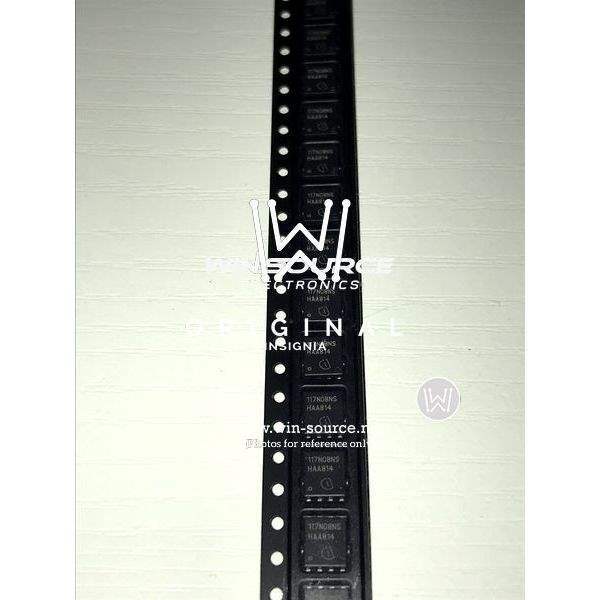

BSC117N08NS5ATMA1 Infineon Technologies BSC117N08NS5ATMA1 real image15220 BSC117N08NS5ATMA1 real image
Same model may have multiple batches, images only for reference.
BSC117N08NS5ATMA1 Infineon Technologies BSC117N08NS5ATMA1 real image15220 BSC117N08NS5ATMA1 real image
BSC117N08NS5ATMA1 Infineon Technologies BSC117N08NS5ATMA1 real image15220 BSC117N08NS5ATMA1 real image
Same model may have multiple batches, images only for reference.

BSC117N08NS5ATMA1

Part No BSC117N08NS5ATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 80V 49A 8TDSON
Datasheet
BSC117N08NS5ATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 80V
Continuous Drain Current at 25°C 49A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Gate-Source Threshold Voltage 3.8V @ 22μA
Max Gate Charge 18nC @ 10V
Max Input Capacitance 1300pF @ 40V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 50W (Tc)
Maximum Rds On at Id,Vgs 11.7 mOhm @ 25A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TDSON-8
Dimension 8-PowerTDFN
Win Source Part Number 1024350-BSC117N08NS5ATMA1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BSC117N08NS5ATMA1 CAD Model

Description

The Infineon Technologies MOSFET is a N-Channel polarity electronic component that is designed for use in discrete semiconductor products.

  • Polarity: N-Channel
  • Mounting: SMD (SMT)
  • Package: Reel - TR
  • Power Dissipation: 2.5W (Ta), 50W (Tc)
  • Drain-Source Breakdown Voltage: 80V
  • Continuous Drain Current @ 25°C: 49A (Tc)
  • Gate-Source Threshold Voltage: 3.8V @ 22μA
  • Maximum Gate Charge: 18nC @ 10V
  • Maximum Input Capacitance: 1300pF @ 40V
  • Popularity: Medium
  • Supply and Demand: Limited
  • Case/Package: PG-TDSON-8, 8-PowerTDFN
