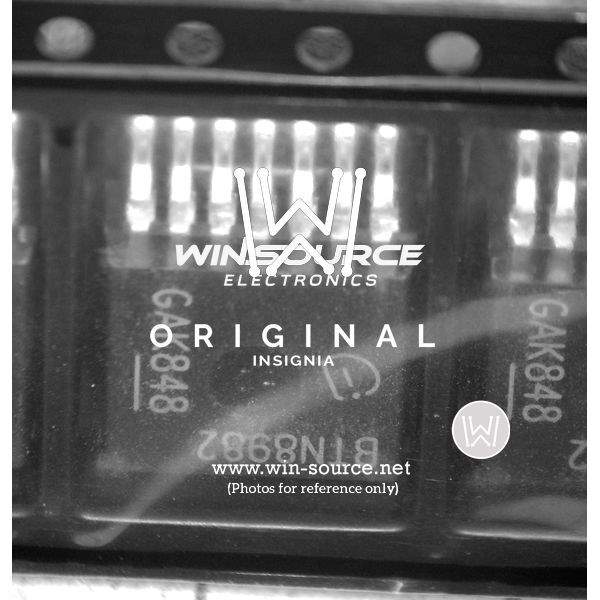

The BTN8982TA is a high-current half-bridge motor control IC manufactured by Infineon Technologies. It's designed for driving automotive DC motors and other inductive loads. This IC integrates multiple protection features and diagnostic capabilities, making it suitable for safety-critical applications.

Applications:

• Automotive DC motor control
• Power windows
• Sunroof control
• Seat adjustment
• Pump control

Features:

• High-side and low-side switches integrated
• Current sense capability
• Over-current protection
• Over-temperature protection
• Short-circuit protection
• Diagnostic feedback
• Logic level inputs

Benefits:

• High current capability for driving large motors
• Integrated protection features for robust operation
• Diagnostic feedback for system monitoring
• Simplified motor control design
• Increased system reliability
• Reduced external component count

Additional Details:

The BTN8982TA is designed with integrated high-side and low-side MOSFET switches, enabling efficient motor control. The integrated current sense capability allows for precise motor current monitoring and control. The IC also includes comprehensive protection features, such as over-current protection, over-temperature protection, and short-circuit protection, to safeguard the device and the motor from damage. The diagnostic feedback provides information about the IC's status, allowing for proactive fault detection and system maintenance. The logic level inputs simplify the interface with microcontrollers and other control devices.

This IC is particularly well-suited for automotive applications where reliability and safety are paramount. The integrated protection features and diagnostic capabilities ensure robust operation and prevent system failures. The high current capability enables the driving of large DC motors, making it suitable for power windows, sunroof control, and other automotive applications. The BTN8982TA's design simplifies motor control design, reducing the need for external components and lowering system cost.
