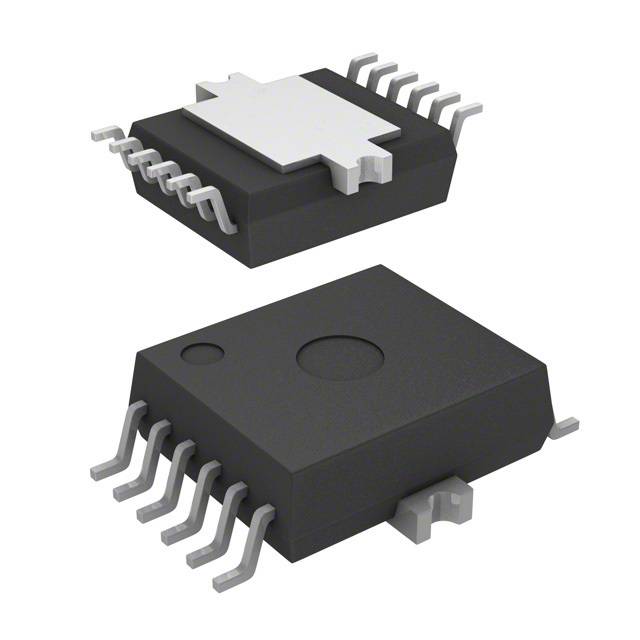

Same model may have multiple batches, images only for reference.
BTS52422LAUMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

BTS52422LAUMA1

Part No BTS52422LAUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH HISIDE PG-DSO-12-9
Datasheet
BTS52422LAUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Switch Type General Purpose
Number of Outputs 2
Output Type N-Channel
Voltage - Load 4.5 V to 28 V
Supply Voltage - Operating Not Required
Current - Output (Max) 5.5A
Rds On (Typ) 19 mOhm
Input Type Non-Inverting
Features Auto Restart, Status Flag
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package PG-DSO-12-9
Win Source Part Number 144172-BTS52422LAUMA1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BTS52422LAUMA1 CAD Model

Description

Description

The BTS52422LAUMA1 is a state-of-the-art high-side switch offering unparalleled protection and efficiency for both industrial and automotive applications. Its sophisticated design ensures robust operation under diverse conditions.

Applications

  • Advanced driver-assistance systems (ADAS)
  • Power distribution in electric vehicles
  • Smart industrial systems

Features and Benefits

  • Resilient to voltage and temperature variances
  • Provides effective load disconnect for safety
  • Low standby current consumption for increased efficiency

The BTS52422LAUMA1 meets the demanding needs of modern electronic applications with its advanced feature set and reliable performance.
