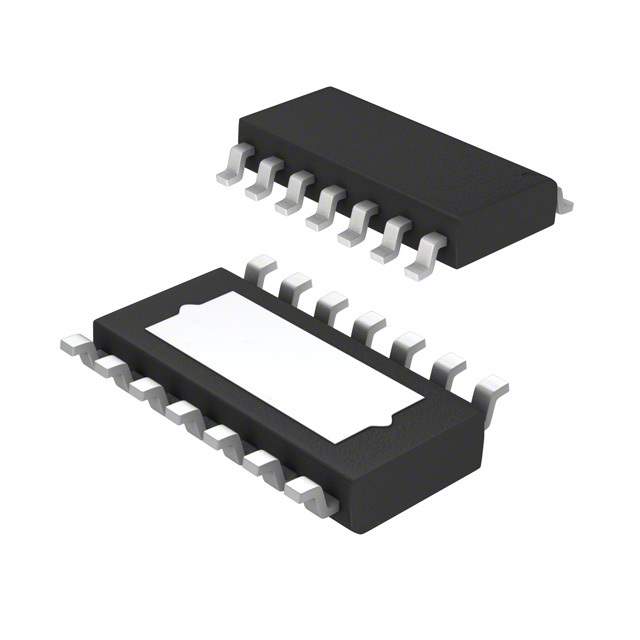

BTT60302EKBXUMA1 Real Image
Same model may have multiple batches, images only for reference.

BTT60302EKBXUMA1

Part No BTT60302EKBXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH N-CHAN 1:1 DSO-14 / Power Switch/Driver 1:1 N-Channel 4A PG-DSO-14-40-EP
Datasheet
BTT60302EKBXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Last Time Buy
Switch Type General Purpose
Number of Outputs 2
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 5V ~ 36V
Supply Voltage - Operating Not Required
Current - Output (Max) 4A
Rds On (Typ) 32mOhm
Input Type Non-Inverting
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-DSO-14-40-EP
Package / Case 14-SOIC (0.154", 3.90mm Width) Exposed Pad
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2156-BTT60302EKBXUMA1,BTT60302EKBXUMA1TR,SP001364296,BTT60302EKBXUMA1DKR,BTT60302EKBXUMA1CT,IFEINFBTT60302EKBXUMA1,BTT60302EKBXUMA1-ND
Standard Package 2,500
Win Source Part Number 973480-BTT60302EKBXUMA1
Ultra Librarian 3D Model Ultra Librarian BTT60302EKBXUMA1 CAD Model

Description

The BTT60302EKBXUMA1 is a 2-output high-side N-channel Power Distribution Switch designed for automotive applications.

  • Input Interface: Non-inverting
  • Switch Type: General-purpose
  • Fault Protection: Current limiting, open load detect, over temperature and over voltage protection
  • Maximum Output Current: 4A
  • Voltage Load Range: 5V to 36V
  • Package: 14-SOIC (0.154", 3.90mm Width) Exposed Pad
