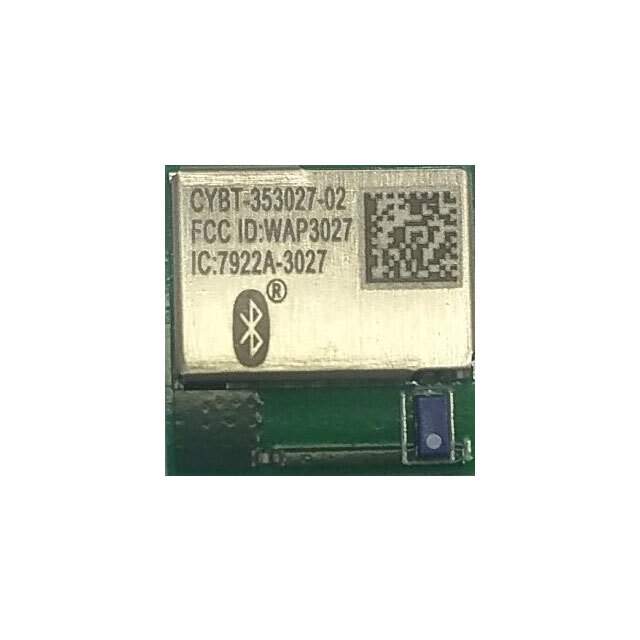

Same model may have multiple batches, images only for reference.

CYBT-353027-02

Name: CYBT-353027-02
Brand: Infineon Technologies
SKU: 1348231
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CYBT-353027-02
Manufacturer	Infineon Technologies
Catalog	RF Transceiver Modules
Description	RF TXRX MOD BLE 5.0 TRC ANT SMD / Bluetooth Bluetooth v5.0 Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Trace Surface Mount
Datasheet	CYBT-353027-02 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Transceiver Modules and Modems
Mfr	Infineon Technologies
Series	EZ-BT™ WICED®
Package	Tape & Reel
RF Family/Standard	Bluetooth
Protocol	Bluetooth v5.0
Modulation	8DPSK, DQPSK, GFSK
Frequency	2.402GHz ~ 2.48GHz
Data Rate	6Mbps
Power - Output	12dBm
Sensitivity	-96.5dBm
Serial Interfaces	I²C, I²S, PCM, SPI, UART
Antenna Type	Integrated, Trace
Memory Size	512kB Flash
Voltage - Supply	2.3V ~ 3.6V
Current - Receiving	26.4mA
Current - Transmitting	60.3mA
Mounting Type	Surface Mount
Temperature Range - Operating	-30°C ~ 85°C (TA)
Package / Case	19-SMD Module
Base Product Number	CYBT-353027
Standard Package	500
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	5A992C
HTSUS	8517.62.0090
Win Source Part Number	1348231-CYBT-353027-02
Ultra Librarian 3D Model	Ultra Librarian CYBT-353027-02 CAD Model

Alternative Products

Description

The CYBT-353027-02 is a Bluetooth v5.0 RF Transceiver Module from the EZ-BT™ WICED® series.

Frequency Range: 2.402GHz to 2.48GHz
Data Rate: 6Mbps
Antenna Type: integrated trace antenna
Power Output: 12dBm
Sensitivity: -96.5dBm
Current Consumption (Receiving): 26.4mA
Current Consumption (Transmitting): 60.3mA
Serial Interfaces: I²C, I²S, PCM, SPI, UART
Package: 19-SMD module
Temperature Range: -30°C to 85°C (TA)
