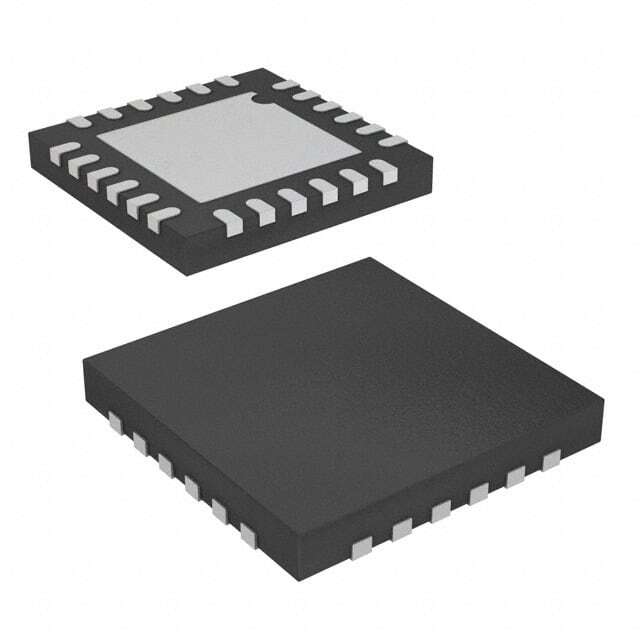

Same model may have multiple batches, images only for reference.
CYPD3171-24LQXQ
Same model may have multiple batches, images only for reference.

CYPD3171-24LQXQ

Part No CYPD3171-24LQXQ
Manufacturer Infineon Technologies
Catalog Embedded - Microcontrollers - Application Specific
Description IC USB TYPE-C CONTROLLER 24QFN
Datasheet
CYPD3171-24LQXQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Application Specific Microcontrollers
Mfr Infineon Technologies
Series EZ-PD™ CCG3PA
Package Tray
Product Status Active
Programmable Not Verified
Applications USB Type C
Core Processor ARM® Cortex®-M0
Program Memory Type FLASH (64kB)
RAM Size 8K x 8
Interface I2C, SPI, UART
Number of I/O 12
Voltage - Supply 3V ~ 24.5V
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 24-UFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Base Product Number CYPD3171
Standard Package 490 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 851137-CYPD3171-24LQXQ
Ultra Librarian 3D Model Ultra Librarian CYPD3171-24LQXQ CAD Model

Description

The CYPD3171-24LQXQ is an application-specific microcontroller from the EZ-PD™ CCG3PA series by Infineon Technologies.

  • Core Processor: ARM® Cortex®-M0
  • Number of I/O: 12
  • Program Memory Size: 64kB
  • RAM Size: 8K x 8
  • Interface: I2C, SPI, UART
  • Voltage - Supply: 3V ~ 24.5V
  • Operating Temperature: -40°C ~ 105°C
  • Mounting Type: Surface Mount
  • Package / Case: 24-UFQFN Exposed Pad
  • Series: EZ-PD™ CCG3PA
  • Application: USB Type C
