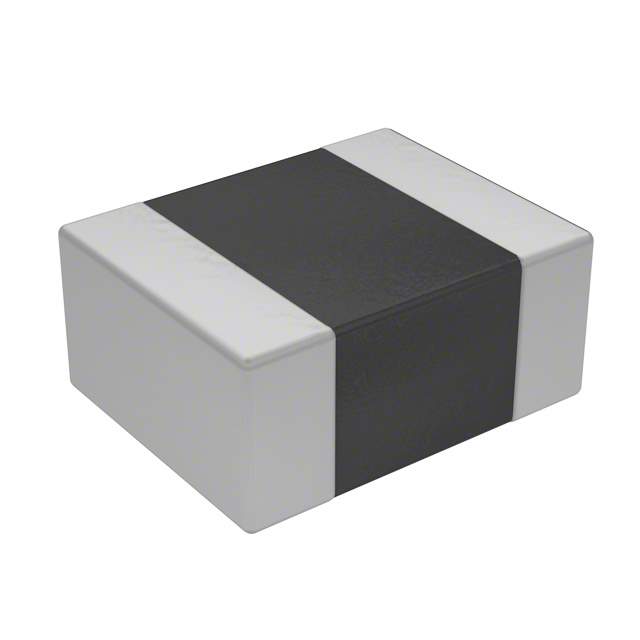

LQM2MPN2R2MDHL Real Image1 LQM2MPN2R2MDHL Real Image2
Same model may have multiple batches, images only for reference.
LQM2MPN2R2MDHL Real Image1 LQM2MPN2R2MDHL Real Image2
LQM2MPN2R2MDHL Real Image1 LQM2MPN2R2MDHL Real Image2
Same model may have multiple batches, images only for reference.

LQM2MPN2R2MDHL

Part No LQM2MPN2R2MDHL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.27A 250 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics
Packaging Reel
Type Multilayer
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 1.27A
Current - Saturation 680mA
Shielding Shielded
DC Resistance (DCR) 250mOhm Max
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W
Height - Seated (Maximum) 0.028"
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807535-LQM2MPN2R2MDHL
Ultra Librarian 3D Model Ultra Librarian LQM2MPN2R2MDHL CAD Model

Description

The Murata Electronics LQM2MPN2R2MDHL multilayer inductor has an inductance of 2.2μH.

  • Tolerance: ±20%
  • Shielded: Yes
  • Current Rating: 1.27A
  • Material: Ferrite
  • DC Resistance (DCR): 250mOhm Max
  • Temperature Range: -40°C to 85°C
  • Frequency - Self-Resonant: 40MHz
  • Packaging: Reel
  • Popularity: Medium
