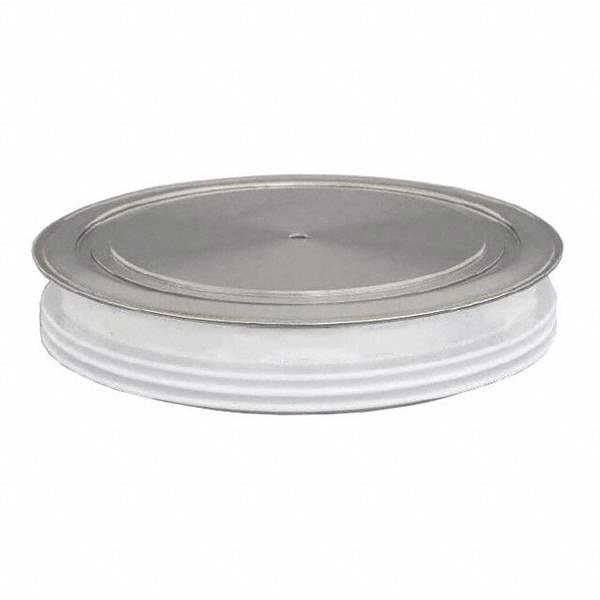

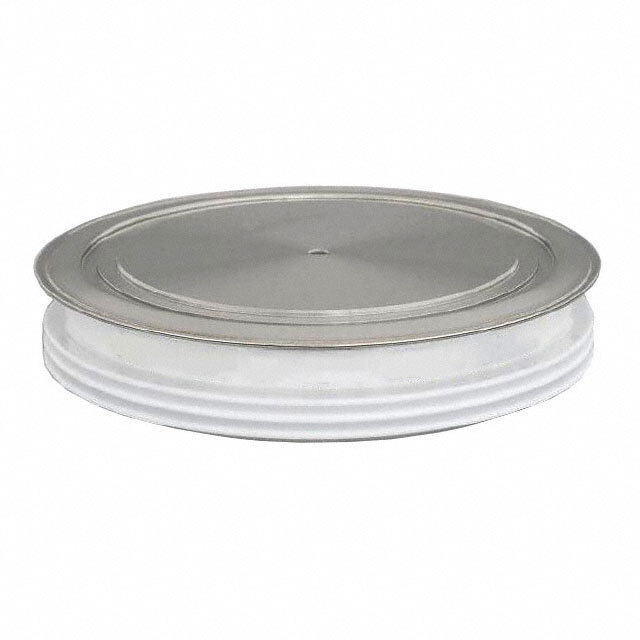

D1600U45X122XPSA1 Infineon Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

D1600U45X122XPSA1

Part No D1600U45X122XPSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description Diode 4500 V 1560A Chassis Mount BG-D12026K-1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Infineon Technologies
Packaging Tray
Technology Standard
Voltage - DC Reverse (Vr) (Max) 4500 V
Current - Average Rectified (Io) 1560A
Voltage - Forward (Vf) (Max) @ If 4.3 V @ 2500 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 150 mA @ 4500 V
Mounting Type Chassis Mount
Package / Case DO-200AE
Supplier Device Package BG-D12026K-1
Operating Temperature - Junction 140°C (Max)
Base Product Number D1600U45
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1480534-D1600U45X122XPSA1
Ultra Librarian 3D Model Ultra Librarian D1600U45X122XPSA1 CAD Model
