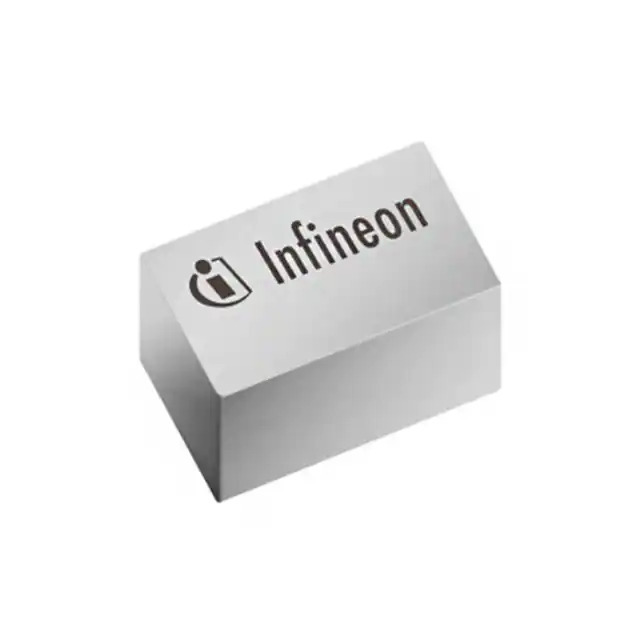

ESD253B1W0201E6327XTSA1

Name: ESD253B1W0201E6327XTSA1
Brand: Infineon Technologies
SKU: 1362348
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ESD253B1W0201E6327XTSA1
Manufacturer	Infineon Technologies
Catalog	TVS - Diodes
Description	TVS DIODE 24VWM 30VC WLL-2-3 / 30V (Typ) Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount PG-WLL-2-3
Datasheet	ESD253B1W0201E6327XTSA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Infineon Technologies
Series	-
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	24V
Voltage - Breakdown (Min)	-
Voltage - Clamping (Max) @ Ipp	30V (Typ)
Current - Peak Pulse (10/1000µs)	3A (8/20µs)
Power - Peak Pulse	90W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	2.8pF @ 1MHz
Temperature Range - Operating	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	PG-WLL-2-3
Base Product Number	ESD253
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362348-ESD253B1W0201E6327XTSA1
Ultra Librarian 3D Model	Ultra Librarian ESD253B1W0201E6327XTSA1 CAD Model

Alternative Products

Description

The Infineon Technologies ESD253B1W0201E6327XTSA1 is a TVS diode designed for circuit protection against transient voltage surges.

Temperature Operating Range: -55°C to 125°C
Reverse Standoff Voltage: 24V
Clamping Voltage: 30V
Package: 0201 (0603 Metric)
Product Status: Active
