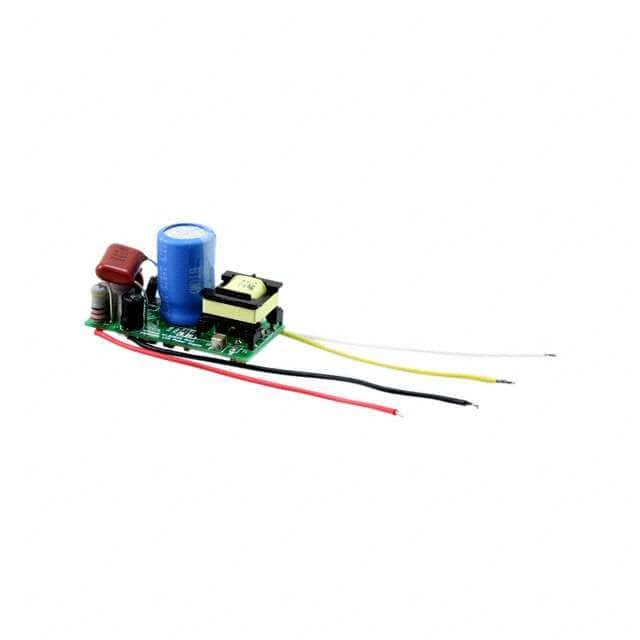

EVALLED-ICL8002G-B2
Same model may have multiple batches, images only for reference.

EVALLED-ICL8002G-B2

Part No EVALLED-ICL8002G-B2
Manufacturer Infineon Technologies
Catalog Board Mount LED Drivers
Description BOARD EVAL ICL8002 DIM 12W LED / ICL8002G 1, Non-Isolated Outputs LED Driver Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - LED Drivers
Mfr Infineon Technologies
Package Box
Product Status Obsolete
Current - Output / Channel 300mA
Outputs and Type 1, Non-Isolated
Voltage - Output 30V ~ 38V
Features Dimmable
Voltage - Input 90 ~ 132 VAC
Supplied Contents Board(s)
Utilized IC / Part ICL8002G
Base Product Number ICL8002G
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 918753-EVALLED-ICL8002G-B2
Ultra Librarian 3D Model Ultra Librarian EVALLED-ICL8002G-B2 CAD Model

Description

The EVALLED-ICL8002G-B2 is an evaluation board for LED drivers.

  • Features: dimmable capabilities
  • Voltage Output: 30V to 38V
  • Voltage Input: 90 ~ 132 VAC
  • Current Output per Channel: 300mA
  • Manufacturer: Infineon Technologies
  • Category: LED driver
