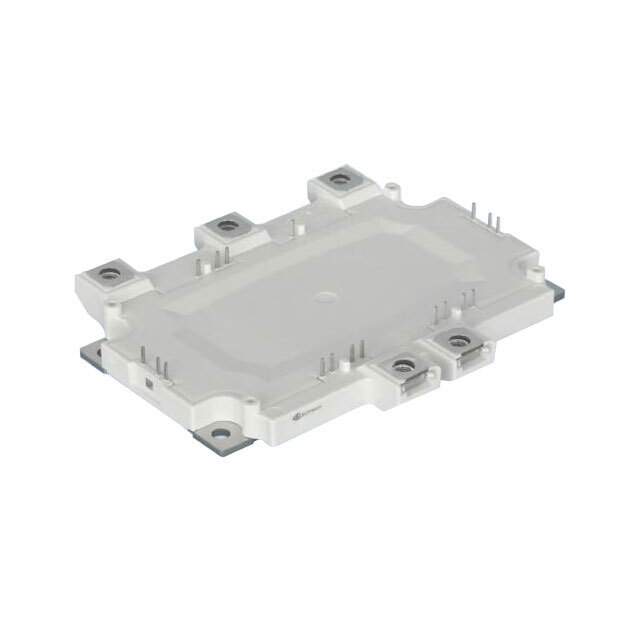

FS400R12A2T4IBPSA1 Real Image1 FS400R12A2T4IBPSA1 Real Image2
FS400R12A2T4IBPSA1 Real Image1 FS400R12A2T4IBPSA1 Real Image2
Same model may have multiple batches, images only for reference.

FS400R12A2T4IBPSA1

Part No FS400R12A2T4IBPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1200V 400A 1500W  /  IGBT Module Trench Field Stop Full Bridge 1200 V 400 A 1500 W Chassis Mount Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series HybridPACK™ 2
Package Tray
Product Status Obsolete
IGBT Type Trench Field Stop
Configuration Full Bridge
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 400 A
Power - Max 1500 W
Vce(on) (Max) @ Vge, Ic 1.85V @ 15V, 300A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 25 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FS400R12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names FS400R12A2T4I,SP001406334
Standard Package 3
Win Source Part Number 1029918-FS400R12A2T4IBPSA1
Ultra Librarian 3D Model Ultra Librarian FS400R12A2T4IBPSA1 CAD Model

Description

The FS400R12A2T4IBPSA1 is a full bridge IGBT module manufactured by Infineon Technologies.

  • Win Source Part Number: 1029918
  • Series: HybridPACK™ 2
  • Power: 1500W
  • Configuration: full bridge
  • Collector-Emitter Breakdown Voltage: 1200V
  • Collector Current: 400A
  • VCE(sat): 1.85V
