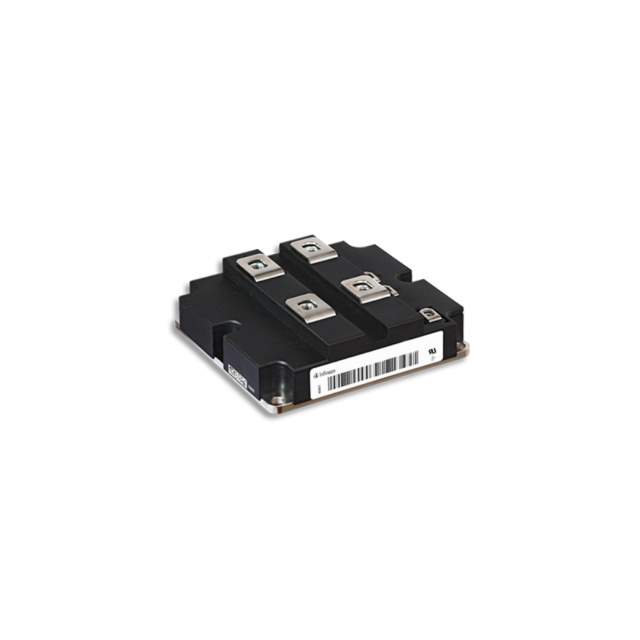

FZ500R65KE3NOSA1 Real Image
Same model may have multiple batches, images only for reference.

FZ500R65KE3NOSA1

Part No FZ500R65KE3NOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MODULE 6500V 500A / IGBT Module Half Bridge 6500 V 500 A 2000000 W Chassis Mount Module
Datasheet
FZ500R65KE3NOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Package Tray
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Max) 6500 V
Current - Collector (Ic) (Max) 500 A
Power - Max 2000000 W
Vce(on) (Max) @ Vge, Ic 3.4V @ 15V, 500A
Current - Collector Cutoff (Max) 5 mA
Input Capacitance (Cies) @ Vce 135 nF @ 25 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -50°C ~ 125°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FZ500R65
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names FZ500R65KE3,SP000798562
Standard Package 2
Win Source Part Number 1060047-FZ500R65KE3NOSA1
Ultra Librarian 3D Model Ultra Librarian FZ500R65KE3NOSA1 CAD Model

Description

The 1060047-FZ500R65KE3NOSA1 is a Half Bridge IGBT Module from Infineon Technologies.

  • Maximum Power: 2000000 W
  • Voltage - Collector Emitter Breakdown (Max): 6500 V
  • Current - Collector (Ic) (Max): 500 A
  • Vce(on) (Max) @ Vge, Ic: 3.4V @ 15V, 500A
  • Input Capacitance (Cies) @ Vce: 135 nF @ 25 V
  • Mounting Type: Chassis Mount
  • Package / Case: Module
  • RoHS Compliant: No
