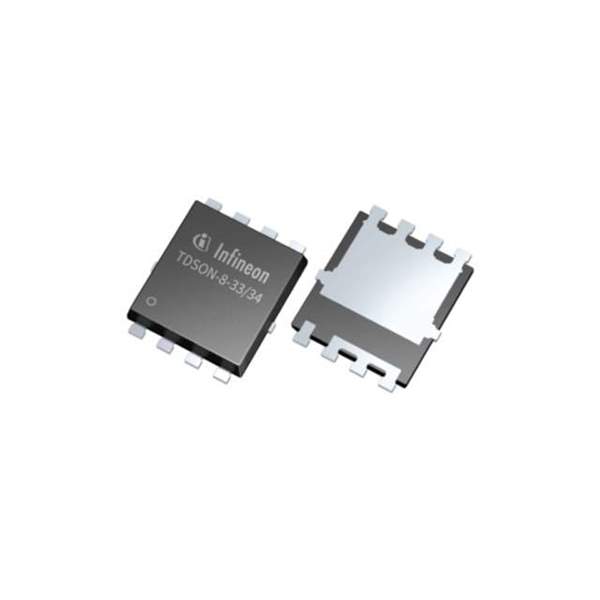

Same model may have multiple batches, images only for reference.

IAUZ30N06S5L140ATMA1

Name: IAUZ30N06S5L140ATMA1
Brand: Infineon Technologies
SKU: 1278285
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IAUZ30N06S5L140ATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Datasheet	IAUZ30N06S5L140ATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	OptiMOS™
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	30A (Tj)
Rds On (Max) @ Id, Vgs	14mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.2V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	12.2 nC @ 10 V
Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	888 pF @ 30 V
Power Dissipation (Max)	33W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-TSDSON-8-32
Package / Case	8-PowerTDFN
Base Product Number	IAUZ30
Other Names	448-IAUZ30N06S5L140ATMA1CT,SP003244402,448-IAUZ30N06S5L140ATMA1TR,448-IAUZ30N06S5L140ATMA1DKR
Standard Package	5,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1278285-IAUZ30N06S5L140ATMA1
Ultra Librarian 3D Model	Ultra Librarian IAUZ30N06S5L140ATMA1 CAD Model

Alternative Products

Description

The IAUZ30N06S5L140ATMA1 is a N-channel MOSFET transistor from Infineon Technologies.

Drain to Source Voltage: 60 V
Continuous Drain Current: 30 A
Rds On (Max) @ Id, Vgs: 14mOhm @ 15A, 10V
Maximum Power Dissipation: 33 W
Package: 8-PowerTDFN package
Maximum Gate-Source Voltage: ±16V
Operating Temperature Range: -55°C to 175°C
