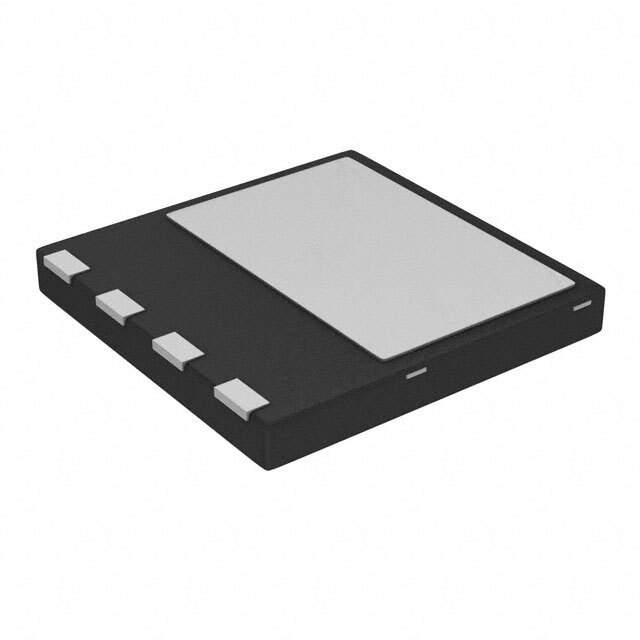

IDL06G65C5XUMA2 Real Image
Same model may have multiple batches, images only for reference.

IDL06G65C5XUMA2

Part No IDL06G65C5XUMA2
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 650V 6A VSON-4  /  Diode Silicon Carbide Schottky 650 V 6A (DC) Surface Mount PG-VSON-4
Datasheet
IDL06G65C5XUMA2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Infineon Technologies
Series CoolSiC™+
Package Tape & Reel (TR)
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 6A (DC)
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 6 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 110 µA @ 650 V
Capacitance @ Vr, F 190pF @ 1V, 1MHz
Mounting SMD (SMT)
Package / Case 4-PowerTSFN
Supplier Device Package PG-VSON-4
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number IDL06G65
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SP001632956
Standard Package 3,000
Win Source Part Number 1064318-IDL06G65C5XUMA2
Ultra Librarian 3D Model Ultra Librarian IDL06G65C5XUMA2 CAD Model

Description

The 1064318-IDL06G65C5XUMA2 is a silicon carbide Schottky diode designed for use in a variety of applications.

  • Maximum Voltage Breakdown: 650 V
  • Forward Voltage: 1.7 V @ 6 A
  • Package: 4-PowerTSFN
  • Reverse Recovery Time (trr): 0 ns
  • Operating Temperature Range: -55°C ~ 150°C
  • Capacitance: 190pF @ 1V, 1MHz
  • Alternative Part: IDL06G65C5XUMA2IDL06G65C5
