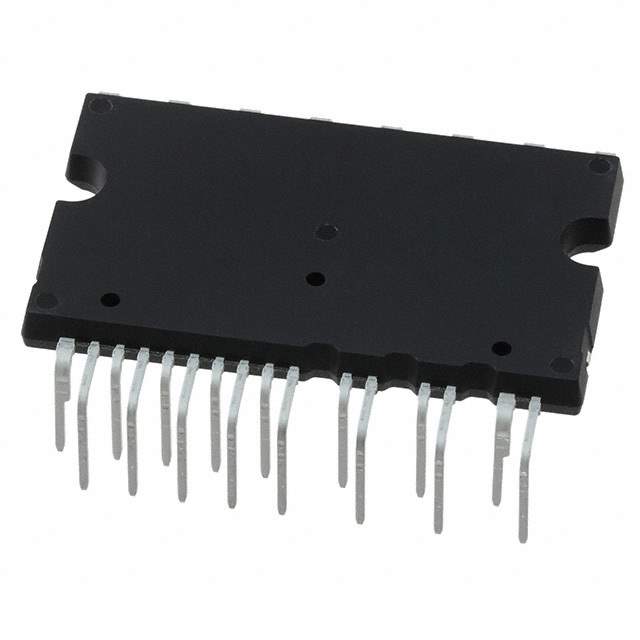

The IKCM15L60GA is an Intelligent Power Module (IPM) from Infineon Technologies. This module integrates multiple components including IGBTs and driver circuitry, providing a compact and efficient solution for controlling motors and other power applications. It is part of the CIPOS™ Mini series.

Applications:

• Refrigerators
• Washing machines
• Air conditioners
• Low-power motor drives
• Fan motors

Features:

• 600 V blocking voltage
• 15 A rated current
• Integrated gate drivers
• Bootstrap diodes for high-side gate drive
• Overcurrent protection
• Short-circuit protection
• Under-voltage lockout (UVLO)
• Temperature monitoring
• DBC substrate for improved thermal performance

Benefits:

• Simplified system design
• Reduced board space
• Increased reliability due to integrated protection features
• Improved energy efficiency
• Lower system cost
• Faster time-to-market

Additional Details:

The IKCM15L60GA is designed to simplify the design of motor drives and other power electronics systems. The integration of the IGBTs, gate drivers, and protection circuitry reduces the number of external components required, saving board space and reducing system cost. The IPM includes overcurrent and short-circuit protection to prevent damage to the module in the event of a fault. The under-voltage lockout feature ensures that the IGBTs are not driven when the supply voltage is too low. The DBC substrate provides excellent thermal performance, allowing the module to handle significant power levels. The integrated bootstrap diodes simplify the design of the high-side gate drive circuitry. Detailed specifications including electrical characteristics, thermal performance, and switching parameters are available in the manufacturer's datasheet.
