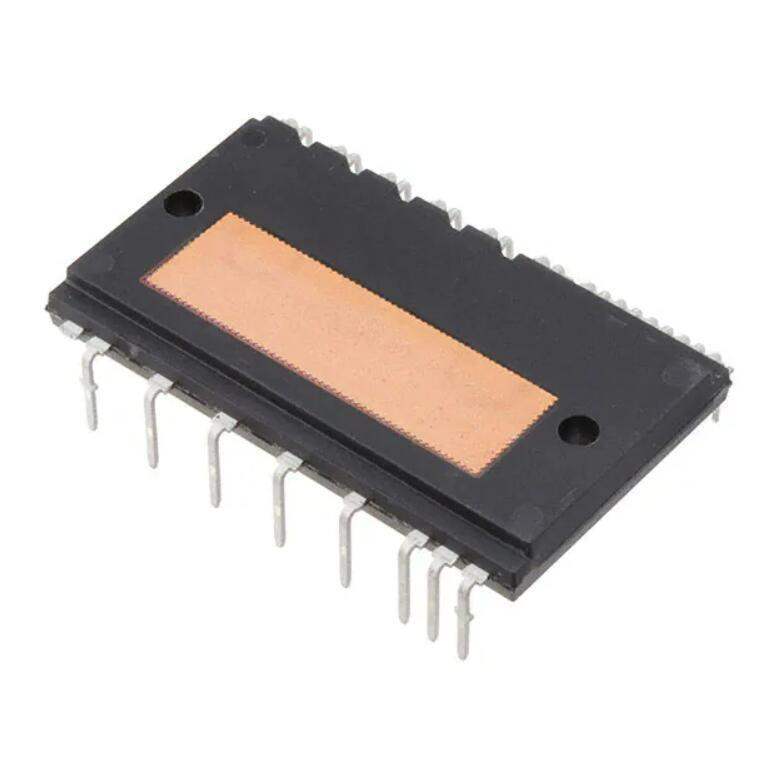

The ON Semiconductor NFAM5065L4B is a high-performance N-Channel Power MOSFET designed for a wide range of applications, including power management, motor control, and power conversion. This MOSFET utilizes advanced technology to provide excellent on-state resistance and switching performance, making it an ideal choice for high-efficiency power systems.

Key Features

• Low On-Resistance: The NFAM5065L4B features a low on-state resistance (R<sub>DS(on)) of 6.5 mΩ at V<sub>GS = 10 V, which minimizes conduction losses and improves overall efficiency.
• High Current Capability: With a continuous drain current (I<sub>D) of 48 A, this MOSFET can handle high current applications with ease.
• Robust Thermal Performance: Its maximum junction temperature of 175°C and a power dissipation of 79 W ensure reliable operation under high thermal conditions.
• Fast Switching Speed: The device offers fast switching speeds, which is beneficial in reducing switching losses and improving performance in high-frequency applications.
• Gate Charge Optimization: Optimized gate charge (Q<sub>G) helps to reduce switching energy losses, especially in applications where high switching frequencies are required.

Applications

• DC/DC Converters
• Motor Drives
• Power Supplies
• Automotive Applications
• Power Management Systems

Package and Reliability

The NFAM5065L4B comes in a compact, surface-mountable D2PAK (TO-263) package, which is suitable for automated assembly processes and saves board space. The device is also characterized by its ruggedness and reliability, with features such as a 100% avalanche tested design and high resistance to thermal and mechanical stress.

Environmental Compliance

ON Semiconductor is committed to environmental stewardship. The NFAM5065L4B is compliant with RoHS (Restriction of Hazardous Substances) and Halogen-Free standards, making it an environmentally friendly choice for modern electronic designs.
