Same model may have multiple batches, images only for reference.

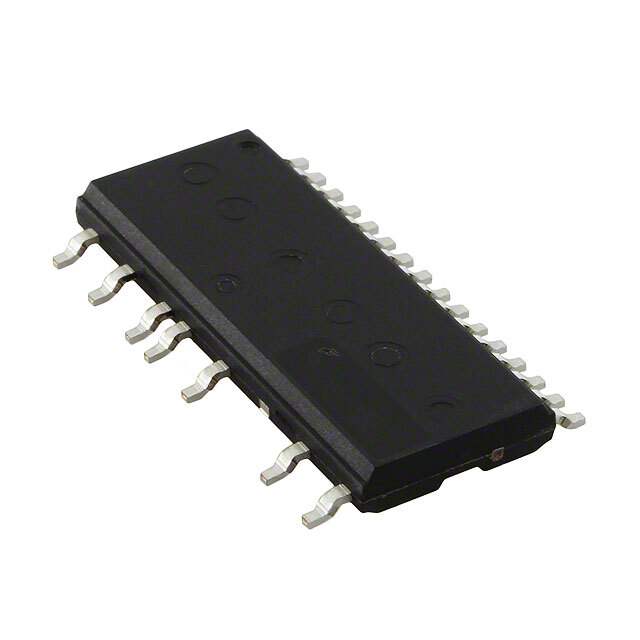

FSB50250US Real Image
Same model may have multiple batches, images only for reference.

FSB50250US

Part No FSB50250US
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description Smart Power Module 23-Pin SPM23-BD T/R / MODULE SPM 500V 1.1A SPM23BD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Status Not For New Designs
Type MOSFET
Configuration 3 Phase
Current 1.1A
Voltage 500V
Isolation Voltage 1500Vrms
Dimension 23-PowerSMD Module, Gull Wing
Win Source Part Number 016523-FSB50250US
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals, Portable Devices, Consumer Electronics, Communications & Networking, Wireless, Audio
Quantity per package 450
Family Name FSB50250US
Introduction Date September 14, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian FSB50250US CAD Model

Description

The FSB50250US is a MOSFET type semiconductor product manufactured by Fairchild/ON Semiconductor. Win Source Part Number: 016523.

  • Configuration: 3-phase
  • Voltage: 500V
  • Current: 1.1A
  • Isolation Voltage: 1500Vrms
  • Package: 23-PowerSMD module, Gull Wing
  • Category: Discrete Semiconductor Product (Not for New Designs)
  • Introduction Date: September 14, 2004
  • Estimated EOL Date: 2022
  • Compliance: Halogen-free
  • Applications: Computers & peripherals, portable devices, consumer electronics, communications & networking, wireless, audio equipment
  • Quantity per package: 450
