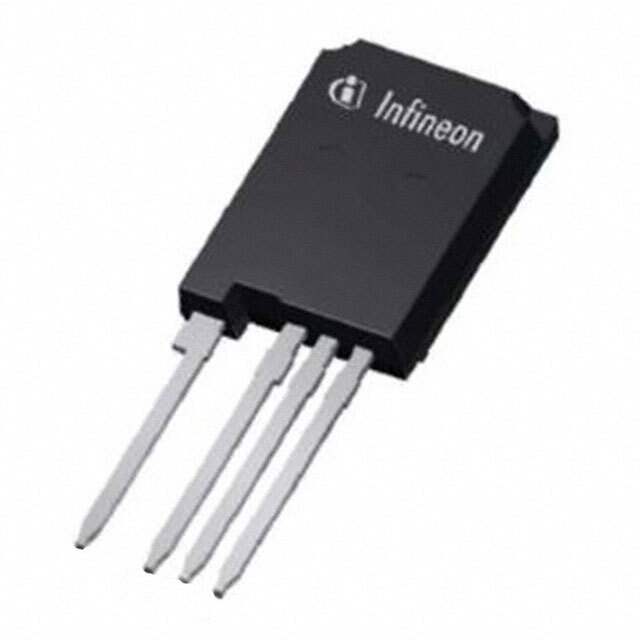

IKY75N120CS6XKSA1

Name: IKY75N120CS6XKSA1
Brand: Infineon Technologies
SKU: 1338488
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IKY75N120CS6XKSA1
Manufacturer	Infineon Technologies
Catalog	IGBTs - Single
Description	IGBT TRENCH 1200V 150A TO247-4 / IGBT Trench Field Stop 1200 V 150 A 880 W Through Hole PG-TO247-4-2
Datasheet	IKY75N120CS6XKSA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr	Infineon Technologies
Series	TrenchStop™
Package	Tube
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	150 A
Current - Collector Pulsed (Icm)	300 A
Vce(on) (Max) @ Vge, Ic	2.15V @ 15V, 75A
Power - Max	880 W
Switching Energy	2.2mJ (on) , 2.95mJ (off)
Input Type	Standard
Gate Charge	530 nC
Td (on/off) @ 25°C	32ns/300ns
Test Condition	600V, 75A, 4Ohm, 15V
Reverse Recovery Time (trr)	205 ns
Temperature Range - Operating	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-4
Supplier Device Package	PG-TO247-4-2
Base Product Number	IKY75N120
Standard Package	30
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1338488-IKY75N120CS6XKSA1
Ultra Librarian 3D Model	Ultra Librarian IKY75N120CS6XKSA1 CAD Model

Alternative Products

Description

The IKY75N120CS6XKSA1 TrenchStop™ IGBT is a single IGBT with a maximum voltage breakdown of 1200V and a maximum power of 880W.

Voltage Breakdown: 1200V
Power: 880W
Current Collector (Ic): 150A
Vce(on): 2.15V @ 15V, 75A
Device Package: TO-247-4
Supplier Device Package: PG-TO247-4-2
Suitable Applications: motor drives, uninterruptible power supplies, and welding equipment.
