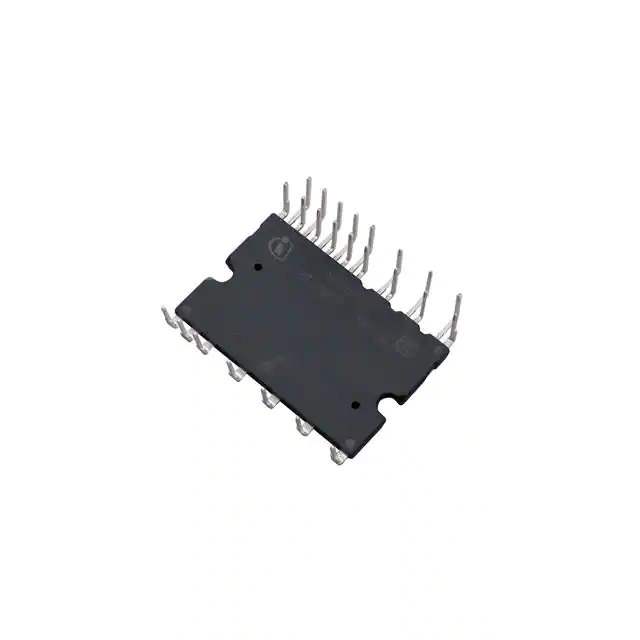

IM818LCCXKMA1 Real Image
Same model may have multiple batches, images only for reference.

IM818LCCXKMA1

Part No IM818LCCXKMA1
Manufacturer Infineon Technologies
Catalog Power Drivers - Modules
Description CIPOS MAXI 1200V 15A PG-MDIP-24 / Power Driver Module IGBT 3 Phase Inverter 1.2 kV 20 A 24-PowerDIP Module (1.094", 27.80mm)
Datasheet
IM818LCCXKMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Power Driver Modules
Mfr Infineon Technologies
Series CIPOS™
Package Tube
Type IGBT
Configuration 3 Phase Inverter
Current 20 A
Voltage 1.2 kV
Voltage - Isolation 2500Vrms
Mounting Type Through Hole
Package / Case 24-PowerDIP Module (1.094", 27.80mm)
Base Product Number IM818
Standard Package 14
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1340399-IM818LCCXKMA1
Ultra Librarian 3D Model Ultra Librarian IM818LCCXKMA1 CAD Model

Description

The IM818LCCXKMA1 is a 3-phase inverter power driver module from the CIPOS™ series of Infineon Technologies.

  • Series: CIPOS™
  • Type: IGBT Module, 3-Phase Inverter
  • Voltage Rating: 1.2 kV
  • Current Rating: 20 A
  • Package: 24-PowerDIP Module
  • Voltage Isolation: 2500Vrms
  • Application: Motor Drives, Solar Inverters, Welding Equipment
