Same model may have multiple batches, images only for reference.

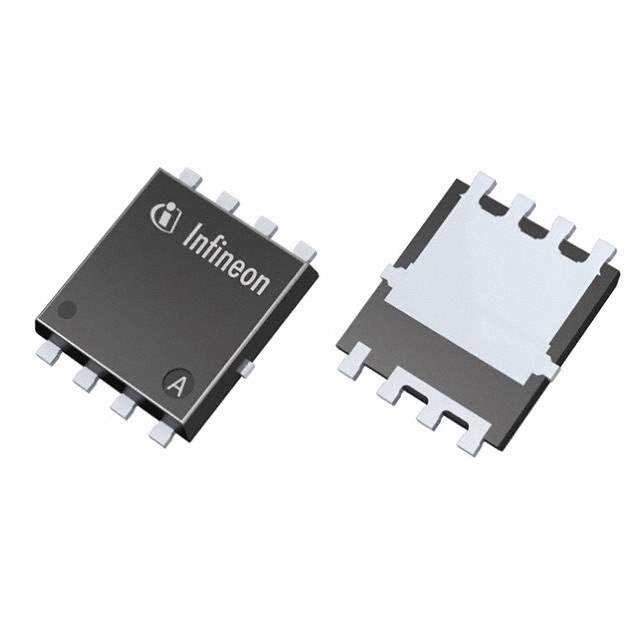

IPC90N04S53R6ATMA1 Real Image
Same model may have multiple batches, images only for reference.

IPC90N04S53R6ATMA1

Part No IPC90N04S53R6ATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 90A 8TDSON-34  /  N-Channel 40 V 90A (Tc) 63W (Tc) Surface Mount PG-TDSON-8-34
Datasheet
IPC90N04S53R6ATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series Automotive, AEC-Q101, OptiMOS™
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 90A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 7V, 10V
Rds On (Max) @ Id, Vgs 3.6mOhm @ 45A, 10V
Vgs(th) (Max) @ Id 3.4V @ 23µA
Gate Charge (Qg) (Max) @ Vgs 32.6 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1950 pF @ 25 V
Power Dissipation (Max) 63W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-TDSON-8-34
Package / Case 8-PowerTDFN
Base Product Number IPC90N04
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names IPC90N04S53R6ATMA1-ND,IPC90N04S53R6ATMA1TR,IPC90N04S53R6ATMA1CT,IPC90N04S53R6ATMA1DKR,SP001418114
Standard Package 5,000
Win Source Part Number 1007529-IPC90N04S53R6ATMA1
Ultra Librarian 3D Model Ultra Librarian IPC90N04S53R6ATMA1 CAD Model

Description

The Infineon Technologies 1007529-IPC90N04S53R6ATMA1 is a MOSFET transistor designed for discrete semiconductor products.

  • FET Type: N-Channel
  • Maximum Drain to Source Voltage: 40V
  • Continuous Drain Current: 90A (Tc) @ 25°C
  • Maximum Rds On: 3.6mOhm @ 45A, 10V
  • Temperature Range: -55°C to 175°C (TJ)
  • Package: 8-PowerTDFN
  • Gate Charge: 32.6 nC @ 10 V
  • Input Capacitance: 1950 pF @ 25 V
  • Drive Voltage (max Rds On): 7V
  • Drive Voltage (min Rds On): 10V
