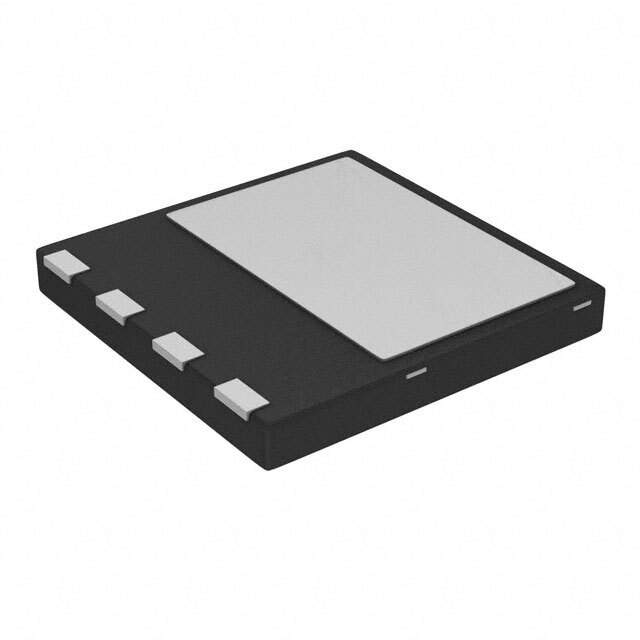

Same model may have multiple batches, images only for reference.

IPL65R310E6AUMA1

Name: IPL65R310E6AUMA1
Brand: Infineon Technologies
SKU: 976667
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IPL65R310E6AUMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 650V 13.1A THIN-PAK / N-Channel 650 V 13.1A (Tc) 104W (Tc) Surface Mount PG-VSON-4
Datasheet	IPL65R310E6AUMA1 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	CoolMOS™ E6
Package	Tape & Reel (TR)
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	13.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	310mOhm @ 4.4A, 10V
Vgs(th) (Max) @ Id	3.5V @ 400µA
Gate Charge (Qg) (Max) @ Vgs	45 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	950 pF @ 100 V
Power Dissipation (Max)	104W (Tc)
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-VSON-4
Package / Case	4-PowerTSFN
Base Product Number	IPL65R
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	ROCINFIPL65R310E6AUMA1,2156-IPL65R310E6AUMA1-ITTR,SP000895216
Standard Package	3,000
Win Source Part Number	976667-IPL65R310E6AUMA1
Ultra Librarian 3D Model	Ultra Librarian IPL65R310E6AUMA1 CAD Model

Alternative Products

Description

The Infineon Technologies CoolMOS E6 MOSFET is a high-performance N-Channel FET designed for applications in Discrete Semiconductor Products.

Vdss: 650 V
Id @ 25°C: 13.1A (Tc)
Mounting Type: SMD (SMT)
Rds On (Max) @ Id, Vgs: 310mOhm @ 4.4A, 10V
Vgs(th) (Max) @ Id: 3.5V @ 400μA
Power Dissipation (Max): 104W (Tc)
Package: 4-PowerTSFN
Gate Charge (Qg) (Max) @ Vgs: 45 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 950 pF @ 100 V
Temperature Range: -40°C ~ 150°C (TJ)
Product Status: Obsolete
