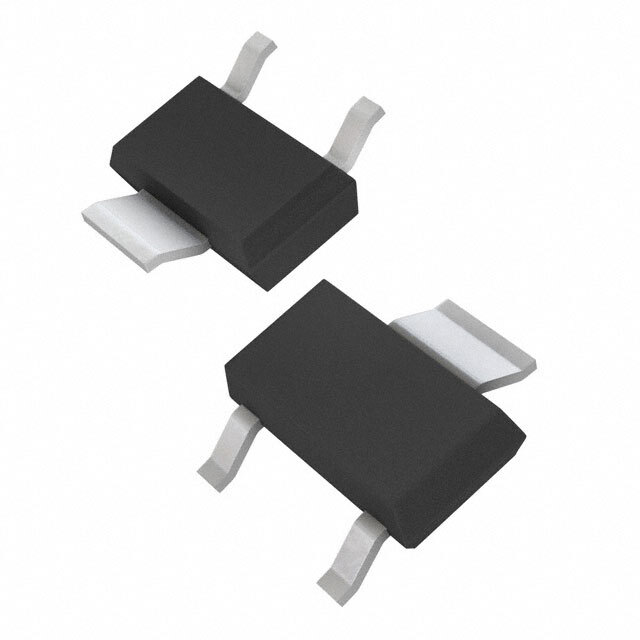

IPN70R1K4P7SATMA1

Name: IPN70R1K4P7SATMA1
Brand: Infineon Technologies
SKU: 1278371
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IPN70R1K4P7SATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Datasheet	IPN70R1K4P7SATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	CoolMOS™ P7
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 700mA, 10V
Vgs(th) (Max) @ Id	3.5V @ 40µA
Gate Charge (Qg) (Max) @ Vgs	4.7 nC @ 10 V
Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	158 pF @ 400 V
Power Dissipation (Max)	6.2W (Tc)
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-SOT223
Package / Case	TO-261-4, TO-261AA
Base Product Number	IPN70R1
Other Names	IPN70R1K4P7SATMA1CT,IPN70R1K4P7SATMA1TR,IPN70R1K4P7SATMA1,SP001657492,IPN70R1K4P7SATMA1DKR
Standard Package	3,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1278371-IPN70R1K4P7SATMA1
Ultra Librarian 3D Model	Ultra Librarian IPN70R1K4P7SATMA1 CAD Model

Description

The 1278371-IPN70R1K4P7SATMA1 is an N-channel MOSFET transistor from the CoolMOS P7 series.

Series: CoolMOS P7
MOSFET Type: N-channel
Maximum Drain-Source Voltage: 700V
Maximum Continuous Drain Current: 4A @ 25°C
Maximum On-Resistance: 1.4Ohm @ 700mA and 10V
Gate Threshold Voltage: 3.5V @ 40μA
Maximum Power Dissipation: 6.2W @ a case temperature of 25°C
Mounting Type: SMD (SMT)
Package: PG-SOT223
Operating Temperature Range: -40°C to 150°C
