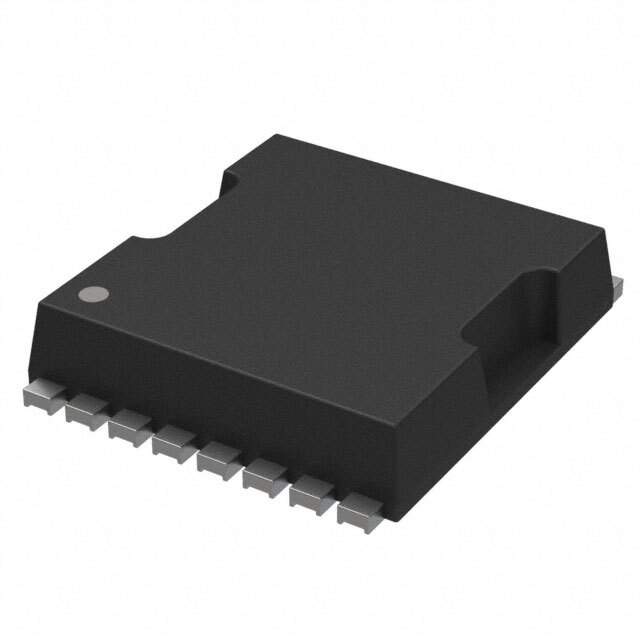

Same model may have multiple batches, images only for reference.

IPT029N08N5ATMA1

Name: IPT029N08N5ATMA1
Brand: Infineon Technologies
SKU: 1065363
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IPT029N08N5ATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 80V 52A/169A HSOF-8 / N-Channel 80 V 52A (Ta), 169A (Tc) 168W (Tc) Surface Mount PG-HSOF-8-1
Datasheet	IPT029N08N5ATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	OptiMOS™ 5
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	52A (Ta), 169A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	2.9mOhm @ 150A, 10V
Vgs(th) (Max) @ Id	3.8V @ 108µA
Gate Charge (Qg) (Max) @ Vgs	87 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6500 pF @ 40 V
Power Dissipation (Max)	168W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-HSOF-8-1
Package / Case	8-PowerSFN
Base Product Number	IPT029
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	SP001581494,IPT029N08N5ATMA1DKR,INFINFIPT029N08N5ATMA1,IPT029N08N5ATMA1CT,IPT029N08N5ATMA1-ND,IPT029N08N5ATMA1TR,2156-IPT029N08N5ATMA1
Standard Package	2,000
Win Source Part Number	1065363-IPT029N08N5ATMA1
Ultra Librarian 3D Model	Ultra Librarian IPT029N08N5ATMA1 CAD Model

Alternative Products

Description

The IPT029N08N5ATMA1 is an N-Channel MOSFET transistor from Infineon Technologies.

Drain to Source Voltage: 80 V
Continuous Drain Current: 52A (Ta), 169A (Tc)
Rds On (Max) @ Id, Vgs: 2.9mOhm @ 150A, 10V
Vgs(th) (Max) @ Id: 3.8V @ 108µA
Package: Tape & Reel
Operating Temperature Range: -55°C to 175°C (TJ)
Gate Charge: 87 nC @ 10 V
Input Capacitance: 6500 pF @ 40 V
Ideal for applications in: Discrete Semiconductor Products, Transistors - FETs, MOSFETs - Single
