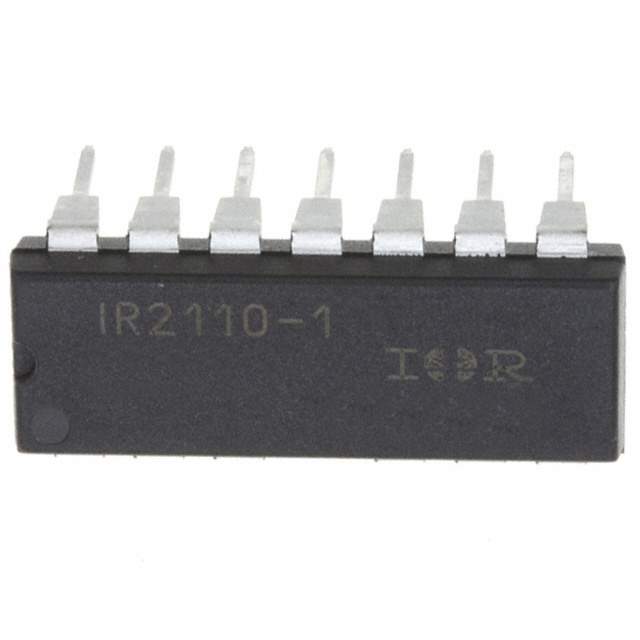

The IR2110-1 is a high-voltage, high-speed power MOSFET and IGBT driver from Infineon Technologies. It's designed to drive N-channel MOSFETs and IGBTs in half-bridge configurations. The driver features independent high and low side referenced output channels, making it versatile for various power control applications.

Applications:

• Motor control inverters
• Power supplies
• Induction heating
• Lighting ballasts
• Class D amplifiers

Features:

• Floating channel designed for bootstrap operation
• Gate drive supply range from 10V to 20V
• Logic input compatible with 3.3V to 5V logic
• Undervoltage lockout (UVLO) for both high and low side drivers
• Matched propagation delay for both channels

Benefits:

• Simplified half-bridge gate drive implementation
• Enhanced system efficiency
• Improved noise immunity
• Protection against low voltage conditions
• Reduced component count

Additional Details:

The IR2110-1 boasts a robust design with high dV/dt immunity, preventing false triggering in noisy environments. It utilizes Infineon's advanced high-voltage IC process, ensuring reliable operation. The floating channel can be used to drive a high-side N-channel MOSFET or IGBT which operates with a voltage up to 500V. The device incorporates deadtime circuitry to prevent shoot-through, thus enhancing the reliability of the power stage. The matched propagation delay simplifies timing design and ensures symmetrical switching performance. The undervoltage lockout feature protects the MOSFETs/IGBTs from operating in a linear region during low supply voltage, preventing overheating and potential damage. Careful layout considerations are crucial when using the IR2110-1 to minimize parasitic inductance and capacitance, optimizing switching performance and reducing EMI. The IR2110-1 is a popular choice for applications requiring efficient and reliable gate driving of power semiconductors in demanding environments.
