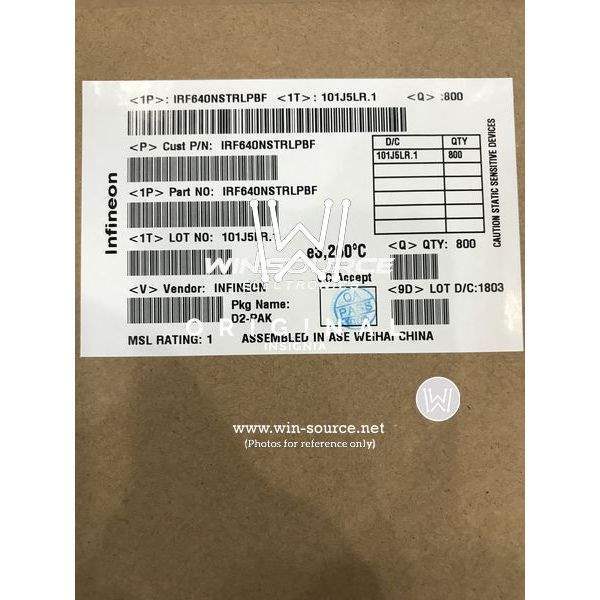

Same model may have multiple batches, images only for reference.

IRF640NSTRLPBF

Name: IRF640NSTRLPBF
Brand: Infineon Technologies
SKU: 159665
Availability: InStock
Rating: 4.93 (156 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRF640NSTRLPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET N-CH Si 200V 18A 3-Pin(2+Tab) D2PAK T/R / MOSFET N-CH 200V 18A D2PAK
Datasheet	IRF640NSTRLPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	200V
Continuous Drain Current at 25°C	18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	4V @ 250μA
Max Gate Charge	67nC @ 10V
Max Input Capacitance	1160pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	150W (Tc)
Maximum Rds On at Id,Vgs	150 mOhm @ 11A, 10V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	SMD (SMT)
Case / Package	D2PAK
Dimension	TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Win Source Part Number	017456-IRF640NSTRLPBF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Family Name	IRF640
Introduction Date	December 21, 2001
ECCN	EAR99
Country of Origin	China, Republic of Korea
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IRF640NSTRLPBF CAD Model

Alternative Products

Description

The Infineon Technologies IRF640NSTRLPBF is an N-Channel MOSFET transistor that can handle a maximum power dissipation of 150W (Tc).

Package: D2PAK
Dimension: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Drain-Source Breakdown Voltage: 200V
Continuous Drain Current: 18A (Tc) @ 25°C
Gate-Source Threshold Voltage: 4V @ 250μA
Maximum Gate Charge: 67nC @ 10V
Maximum Rds On at Id,Vgs: 150 mOhm @ 11A, 10V
Category: Discrete Semiconductor Products
Popularity: High
Supply and Demand Status: sufficient
Estimated EOL Date: 2027
