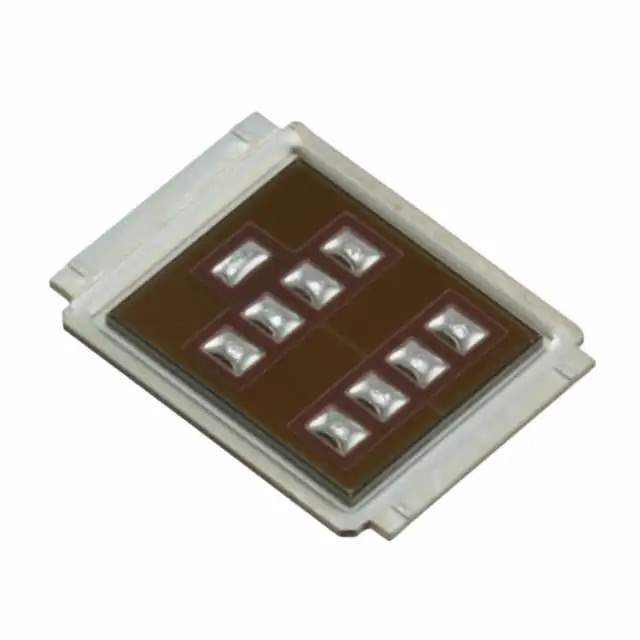

Same model may have multiple batches, images only for reference.

IRF7739L1TRPBF

Name: IRF7739L1TRPBF
Brand: Infineon Technologies
SKU: 746295
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRF7739L1TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 40V 46A DIRECTFET / N-Channel 40 V 46A (Ta), 270A (Tc) 3.8W (Ta), 125W (Tc) Surface Mount DirectFET? Isometric L8
Datasheet	IRF7739L1TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Infineon Technologies
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	46A (Ta), 270A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1mOhm @ 160A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	330 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	11880 pF @ 25 V
Power Dissipation (Max)	3.8W (Ta), 125W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DirectFET™ Isometric L8
Package / Case	DirectFET™ Isometric L8
Base Product Number	IRF7739
Standard Package	4,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	746295-IRF7739L1TRPBF
Ultra Librarian 3D Model	Ultra Librarian IRF7739L1TRPBF CAD Model

Alternative Products

Description

The IRF7739L1TRPBF is a N-Channel MOSFET transistor from Infineon Technologies.

Category: FETs and MOSFETs
Drain to Source Voltage (Vdss): 40 V
Continuous Drain Current (Id): 46A @ 25°C
Rds On (Max): 1mOhm @ 160A and Vgs of 10V
Gate Charge (Qg): 330 nC @ Vgs of 10V
Package: DirectFET™ Isometric L8
Mounting Type: Surface Mount
Power Dissipation: 3.8W @ ambient temperature (Ta) and 125W @ case temperature (Tc)
Operating Temperature: -55°C to 175°C
Product Series: Active
