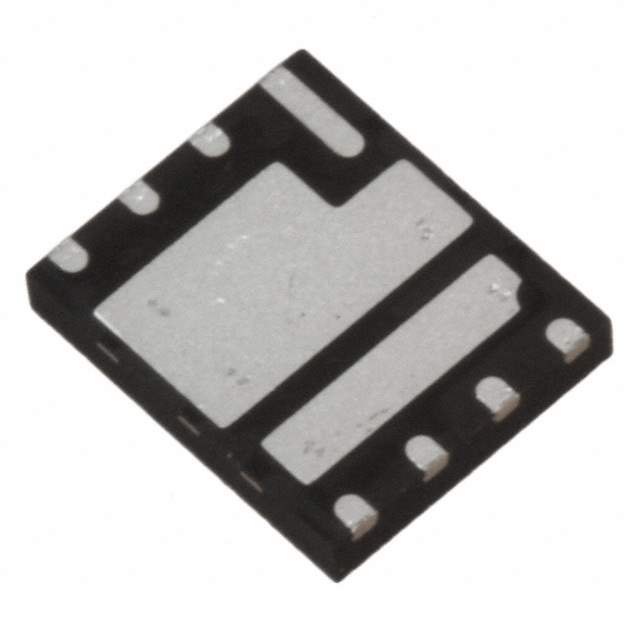

IRFH4255DTRPBF Real Image
Same model may have multiple batches, images only for reference.

IRFH4255DTRPBF

Part No IRFH4255DTRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 25V 64A/105A PQFN
Datasheet
IRFH4255DTRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 25V
Continuous Drain Current at 25°C 64A, 105A
Maximum Rds On at Id,Vgs 3.2 mOhm @ 30A, 10V
Gate-Source Threshold Voltage 2.1V @ 35μA
Max Gate Charge 15nC @ 4.5V
Max Input Capacitance 1314pF @ 13V
Maximum Power Dissipation 31W, 38W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PQFN (5x6)
Win Source Part Number 1046863-IRFH4255DTRPBF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRFH4255DTRPBF CAD Model

Description

The Infineon Technologies IRFH4255DTRPBF is a dual N-channel logic level gate field-effect transistor (FET) designed for use in discrete semiconductor products.

  • Type: Dual N-channel logic level gate FET
  • Use: Discrete semiconductor products
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand: Sufficient
  • Maximum Power Dissipation: 31W and 38W
  • Drain-Source Breakdown Voltage: 25V
  • Continuous Drain Current @ 25°C: 64A and 105A
  • Maximum Rds On @ Id,Vgs: 3.2 mOhm @ 30A, 10V
